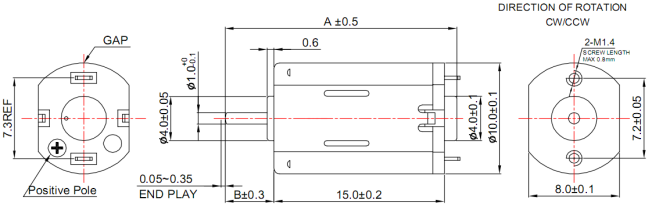

-Motor size: 10*8*15mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-M20VA | 08130 | 2.0-3.0 | 3 | 15200 | 0.045 | 11800 | 0.16 | 0.16 | 1.6 | 0.19 | 0.69 | 7 | 0.55 |
| 07170 | 1.5-3.0 | 2 | 8000 | 0.025 | 6000 | 0.075 | 0.09 | 0.9 | 0.06 | 0.35 | 3.6 | 0.23 | |
| 10100 | 1.5-4.0 | 2.8 | 18000 | 0.05 | 14800 | 0.19 | 0.2 | 2 | 0.3 | 1.1 | 11 | 0.88 | |
