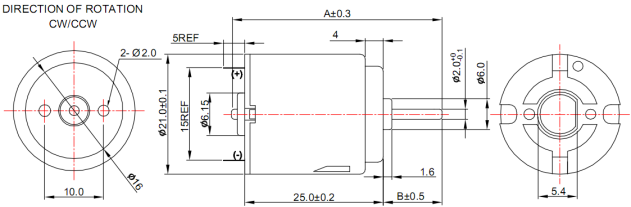

-Motor size: 21*25mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RE-140RA | 2270 | 2.4-3.0 | 3 | 18500 | 0.36 | 14170 | 1.18 | 0.92 | 9.4 | 1.36 | 3.92 | 40 | 3.85 |
| RE-140SA | 14230 | 4.5-6.0 | 6 | 12400 | 0.14 | 9560 | 0.47 | 1.19 | 12.1 | 1.19 | 5.2 | 53 | 1.59 |
| 13130 | 3.0-4.5 | 3 | 13500 | 0.27 | 10740 | 1.05 | 0.39 | 14 | 1.54 | 6.67 | 68 | 4.1 | |
