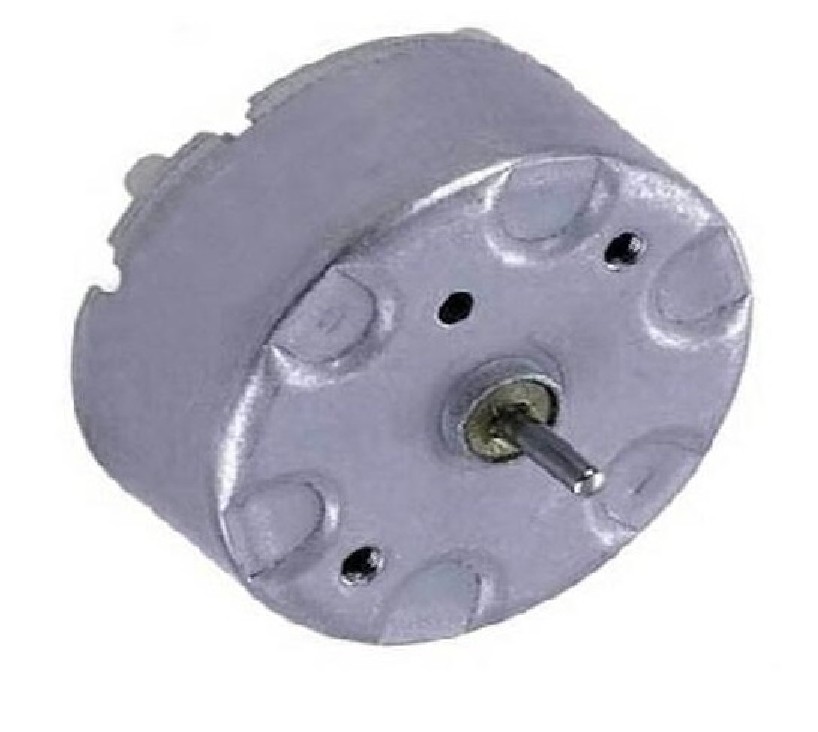

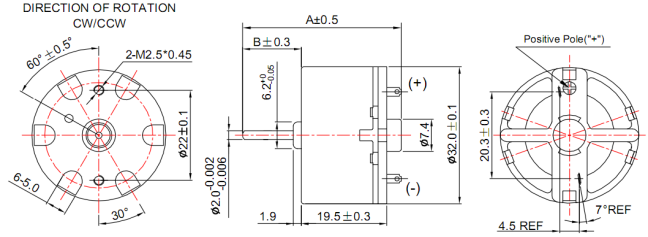

-Motor size: 24.4*19.5mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RF-500TB | 14415 | 1.5-9.0 | 5 | 3100 | 0.026 | 2540 | 0.12 | 1.23 | 12.6 | 0.33 | 6.86 | 70 | 0.54 |
| 12560 | 1.5-12.0 | 6 | 2700 | 0.02 | 2180 | 0.084 | 1.13 | 11.6 | 0.26 | 5.88 | 60 | 0.35 | |
| 07800 | 2.0-4.0 | 3 | 1300 | 0.007 | 1000 | 0.02 | 0.24 | 2.5 | 0.02 | 0.91 | 9.3 | 0.053 | |
| 17280 | 2.0-4.0 | 3 | 2700 | 0.03 | 2297 | 0.13 | 1.12 | 11.4 | 0.28 | 6.7 | 68.4 | 0.66 | |
| 18250 | 2.0-4.0 | 3 | 3100 | 0.03 | 2679 | 0.14 | 0.98 | 10 | 0.29 | 6.86 | 58.4 | 0.54 | |
dispenrser motor, firealarm motor, soap dispenser motor, hand washing motor,dvd motor
