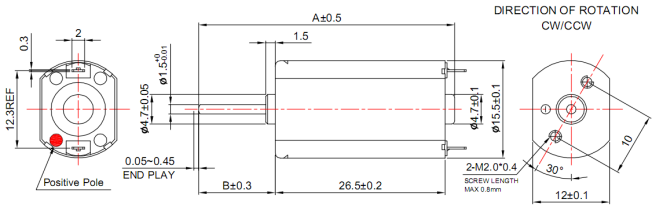

-Motor size: 15.5*12*26.5mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-050PH | 12140 | 2.0-9.0 | 7 | 12500 | 0.06 | 9800 | 0.3 | 1.18 | 12 | 1.2 | 5.29 | 54 | 1.1 |
| 11170 | 2.0-9.0 | 7 | 10500 | 0.04 | 9300 | 0.12 | 0.49 | 5 | 0.48 | 4.51 | 46 | 0.8 | |
| FK-050PH | 05430 | 3.5-24.0 | 24 | 13800 | 0.03 | 9200 | 0.14 | 1.1 | 11.2 | 1.06 | 3.33 | 34 | 0.23 |
| FK-050TS | 2434 | 2.0-4.2 | 3.7 | 16800 | 0.37 | 16300 | 0.6 | 0.49 | 5 | 0.84 | 17.6 | 180 | 7.45 |
