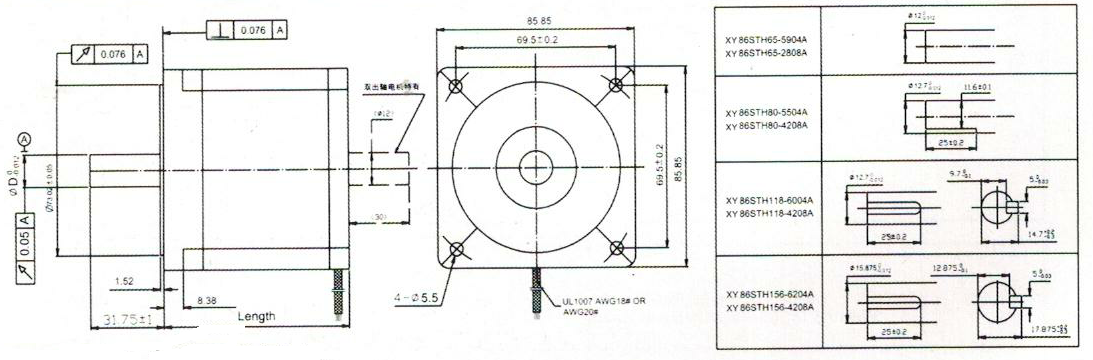

-Motor drawing:       (Unit:mm)

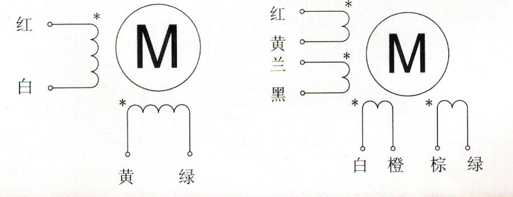

Length can be regulated / Wires 4wires and 8 wires for option

-Technical datas:

电机型号 Model No.	Rated  Voltage	Rated  Current	Rated  Resistance	Rated  Inductance	Holding  Torque	No. of Leads	Rotor  Inertia	Weight	Detent Torque	Length
Single shaft	V	A	Ω	mH	N.m			kg	kg.cm	mm
RS86STH65-5904A	12V	5.9	0.29	1.7	34	4	1000	1.7	0.8	65
RS86STH65-2808A	24V	2.8	1.4	3.9	34	8	1000	1.7	0.8	65
RS86STH80-5504A	12V	5.5	0.42	3.5	45	4	1400	2.3	1.2	80
RS86STH80-4208A	24V	4.2	0.8	3.5	45	8	1400	2.3	1.2	80
RS86STH118-6004A	12V	6	0.5	6	85	4	2700	3.8	2.4	118
RS86STG118-4208A	24V	4.2	1.2	6.5	85	8	2700	3.8	2.4	118
RS86STH156-6204A	12V	6.2	0.8	9	120	4	4000	5.3	3.6	156
RS86STH156-4208A	24V	4.2	1.46	8.68	120	8	4000	5.3	3.6	156
