PM Stepper motors, step motors, stepping motors, micro step motor, 5V stepper motor, stepper motor 12V, 24V stepper motor, 300ppm frequency stepper motor,

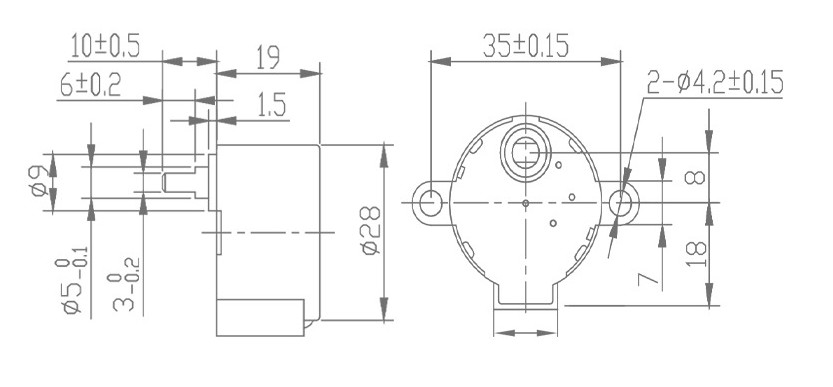

-Motor drawing: (Unit:mm)
-Technical datas:
| Model No. | Phase | Voltage | Resistance（Ω） | Start Frequency (PPS) | Load Frequency (PPS) | Pull-in Torque (mNm) | Detent Torque (mNm) | Step angle | Gear ratio | Noise dB |
| 28BYJ28 | 2 | 5V | 20 | ≥900 | ≥1000 | ≥29.4 | ≥29.4 | 5.625°/16 | 1:16 | ＜35 |
| 28BYJ28 | 2 | 12V | 100 | ≥900 | ≥1000 | ≥39.4 | ≥29.4 | 5.625°/25 | 1:25 | ＜35 |
| 28BYJ28 | 2 | 5V | 20 | ≥900 | ≥1000 | ≥49 | ≥39.4 | 5.625°/32 | 1:32 | ＜35 |
| 28BYJ48 | 4 | 12V | 110 | ≥900 | ≥1000 | ≥49 | ≥39.4 | 5.625°/36 | 1:36 | ＜35 |
| 28BYJ48 | 4 | 12V | 60 | ≥900 | ≥1000 | ≥49 | ≥39.4 | 5.625°/37 | 1:37 | ＜35 |
| 28BYJ48 | 4 | 12V | 200 | ≥900 | ≥1000 | ≥68.8 | ≥39.4 | 5.625°/64 | 1:64 | ＜35 |
| 28BYJ48 | 4 | 24V | 300 | ≥900 | ≥1000 | ≥147 | ≥49 | 5.625°/64 | 1:64 | ＜35 |
| 28BYJ48 | 4 | 12V | 200 | ≥900 | ≥1000 | ≥98 | ≥49 | 5.625°/90 | 1:90 | ＜35 |
Voltage, Resistance,Gear ratio, Pull-in torque we could make according to buyers
