58 Series AC Shaded Pole Motor high speed Electric motor for Oven and Exhaust fan

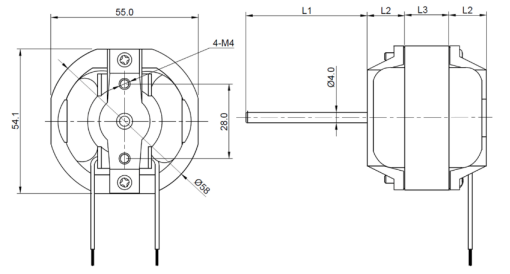

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
|
Model |
Dimension |
ReferencePerformance |
||||||
|
L1 |
L2 |
L3 |
NoLoadSpeed (rpm) |
NoLoadPower (W) |
LoadingSpeed (rpm) |
LoadingPower(W) |
LoadingTorque (g.cm) |
|
|
MBI 58-10 |
10~60 |
13.0 or 13.5 or 14.0 |
10.5 |
2800/3400 |
≤10 |
1000~2000 |
≤12 |
50 |
|
MBI 58-12 |
10~60 |
13.0 or 13.5 or 14.0 |
12.5 |
2800/3400 |
≤12 |
1000~2050 |
≤15 |
70 |
|
MBI 58-16 |
10~60 |
13.0 or 13.5 or 14.0 |
16.5 |
2800/3400 |
≤17 |
1100~2200 |
≤22 |
100 |
|
MBI 58-20 |
10~60 |
13.0 or 13.5 or 14.0 |
20.5 |
2800/3400 |
≤22 |
1100~2300 |
≤24 |
130 |
|
MBI 58-25 |
10~60 |
13.0 or 13.5 or 14.0 |
25.5 |
2800/3400 |
≤28 |
1200~2400 |
≤30 |
150 |
|
MBI 58-30 |
10~60 |
13.0 or 13.5 or 14.0 |
30.5 |
2800/3400 |
≤32 |
1200~2500 |
≤35 |
190 |
|
MBI 58-35 |
10~60 |
13.0 or 13.5 or 14.0 |
35.5 |
2800/3400 |
≤35 |
1300~2600 |
≤40 |
210 |

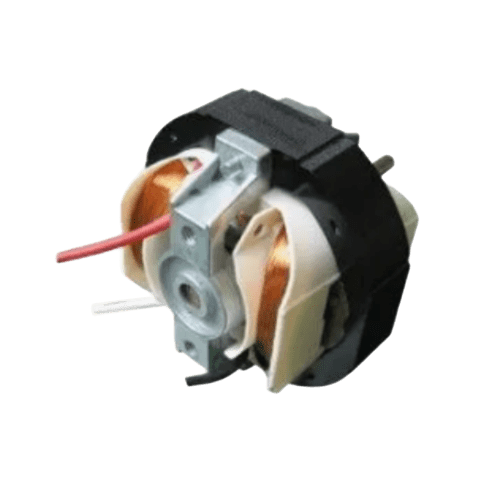

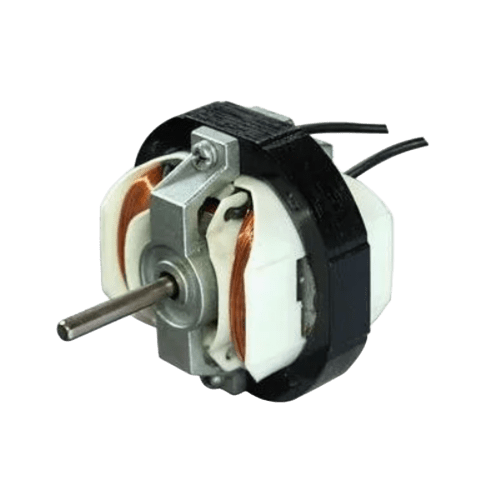

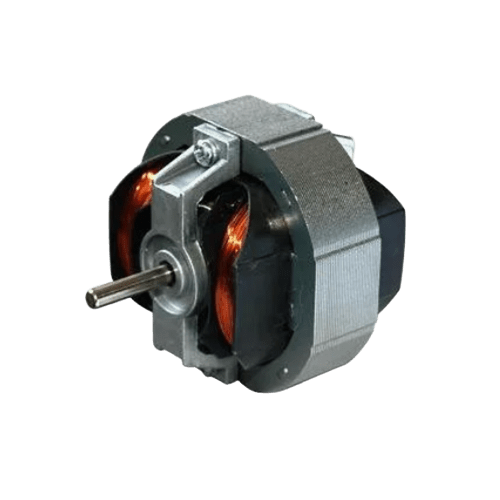

PRODUCT DISPLAY
 |
 |
 |
