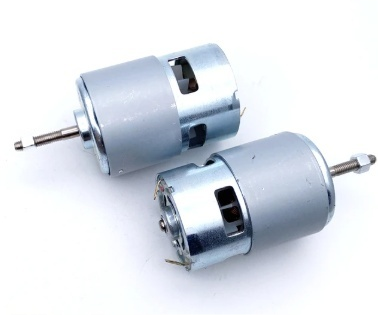

RS-755/750 dc series Motor 24V High Torque for Cordless Power Tool and Door Opener

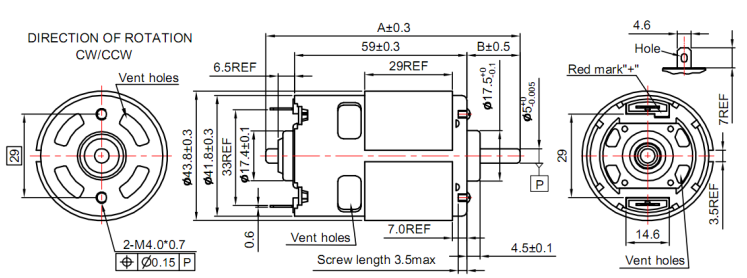

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
|||||||||
|
OPERATING |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
||||
|
RANGE |
V |
r/min |
A |
r/min |
A |
mNm |
g.cm |
W |
mNm |
g.cm |
A |
||
|
RS-750SH |
7032R |
6.0-12.0 |
12 |
15000 |
1.79 |
12671 |
7.52 |
48.6 |
496 |
66.6 |
393.1 |
4010 |
55.6 |
|
29195R |
6.0-24.0 |
24 |
5000 |
0.19 |
4470 |
0.79 |
34.1 |
348 |
15.48 |
223.5 |
2280 |
9.72 |
|
|
RS-750PH |
4568R |
5.0-13.0 |
12 |
7500 |
0.35 |
6683 |
2.8 |
34.25 |
349 |
23.9 |
309 |
3150 |
22.5 |
|
8021R |
6.0-12.0 |
9.6 |
17800 |
2.9 |
14810 |
14.38 |
57.8 |
578 |
87.8 |
344 |
3440.94 |
71.24 |
|
|
RS-755PH |
5535R |
5.0-19.0 |
18 |
11200 |
1.3 |
9496 |
7.3 |
89.3 |
910 |
88.6 |
587.8 |
5990 |
40.5 |
|
26118 |
6.0-24.0 |
24 |
4300 |
0.25 |
3677 |
0.87 |
37.7 |
377.9 |
14.28 |
260 |
2608.78 |
4.53 |
|
|
RS-755SH |
7512R |
3.0-6.0 |
6 |
9500 |
2.26 |
8123 |
9.31 |
45.1 |
460 |
38.2 |
306.9 |
3130 |
66.34 |
|
26130R |
6.0-12.0 |
12 |
1715 |
0.137 |
1386 |
0.58 |
28.4 |
284.42 |
4.05 |
148 |
1482.6 |
2.45 |
|
|
27115 |
6.0-24.0 |
24 |
4260 |
0.18 |
3614 |
1.01 |
43 |
438.6 |
16.27 |
283.5 |
2891.7 |
5.64 |
|

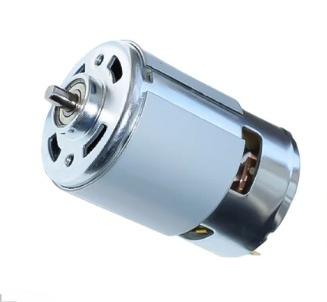

PRODUCT DISPLAY
 |
 |
 |
