12V 24V RC-450 DC Vibration Motor low current for Massager and Flour Sifter

Short Description:

This product is a vibration motor.Its characteristics include Iron-Base Powder Metallurgy Eccentric Wheel,Carbon Brush,Plastic End Cap and Ball Bearing On The End Cap Side.It can be applied to Massager,Flour Sifter and Massage Armchair .We provide specialized on-demand customization services, welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

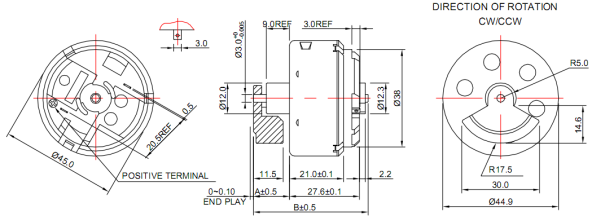

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL	VOLTAGE		Start Voltage	RATED			STALL CURRENT
	OPERATING	NOMINAL	Start Voltage	SPEED	CURRENT	LOAD	STALL CURRENT
	RANGE	V	V	r/min	A	(Unit:mm)	A
RC-450SA-11700-44BU	6.0-12.0	12	2	1900	0.065	R17.5*11.5	0.5
RC-450SA-12580-44BU	6.0-24.0	24	2	4300	0.1	R17.5*11.5	1.5
