RS-770/775H 12V 24V dc motor high rpm electric dc motor for Cordless Power Tool and EPB

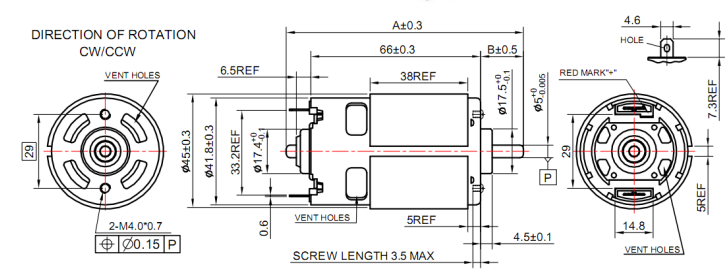

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
|||||||||
|
OPERATING |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
||||
|
RANGE |
V |
r/min |
A |
r/min |
A |
mNm |
g.cm |
W |
mNm |
g.cm |
A |
||
|
RS-770SH |
8523R |
6.0-12.0 |
12 |
15000 |
2.2 |
13177 |
15.91 |
81 |
826.2 |
111.8 |
666.9 |
6802 |
115 |
|
29195R |
6.0-24.0 |
24 |
5000 |
0.19 |
4470 |
0.79 |
34.1 |
348 |
15.48 |
223.5 |
2280 |
9.72 |
|
|
RS-775SH |
7114 |
6.0-20.0 |
18 |
19500 |
2.6 |
17086 |
18.4 |
152.8 |
1530 |
268.7 |
1230 |
12365 |
130.2 |
|
25110R |
6.0-24.0 |
24 |
3478 |
0.15 |
2925 |
0.75 |
44.4 |
452.9 |
13.35 |
245.7 |
2506 |
4.07 |
|
|
RS-775PH |
8015 |
6.0-24.0 |
18 |
19500 |
2.7 |
16800 |
18.2 |
150 |
1500 |
258 |
1080 |
10800 |
115 |
|
8011R |
6.0-12.0 |
12 |
17500 |
2.01 |
15516 |
15.7 |
89.7 |
897.6 |
142.8 |
792 |
7917.35 |
123.12 |
|
|
4543R |
5.0-25.0 |
24 |
8800 |
0.71 |
7680 |
4.88 |
105.9 |
1080 |
85 |
836 |
8520 |
33.5 |
|
|
7417 |
5.0-13.0 |
12 |
12000 |
1.55 |
10490 |
10.9 |
84 |
856 |
92.1 |
670 |
6835 |
75.6 |
|
|
5028R |
6.0-12.0 |
12 |
6800 |
0.53 |
5844 |
3.24 |
44.1 |
449.8 |
27 |
313.8 |
3200 |
19.8 |
|
