RS-790/795H dc motor High Torque Electric 12v 24v micro dc motor for Power Tool and Air Pump

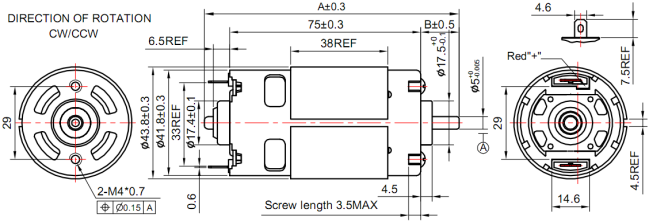

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-790SH | 4577R | 6.0-12.0 | 12 | 4200 | 0.35 | 3609 | 2.13 | 49.7 | 507 | 18.77 | 352.9 | 3600 | 13 |
| 8018R | 6.0-12.0 | 12 | 17500 | 2.2 | 15287 | 15.2 | 86.8 | 885 | 139 | 686.3 | 7000 | 105 | |
| RS-795PH | 3760 | 6.0-24.0 | 24 | 6500 | 0.18 | 5752 | 1.39 | 41.5 | 418 | 25.1 | 363 | 3630 | 10.65 |
| RS-795SH | 5533R | 6.0-12.0 | 12 | 5250 | 0.33 | 4742 | 3.08 | 54.5 | 556 | 27.05 | 563.2 | 5745 | 28.8 |
| 7006R | 6.0-12.0 | 12 | 25000 | 4.01 | 21253 | 22.7 | 83.2 | 832 | 185 | 555 | 5551 | 129 | |
| 8509R | 6.0-12.0 | 12 | 19436 | 3.1 | 16755 | 19.38 | 95.2 | 952.83 | 164 | 690 | 6907.5 | 121.1 | |
| 4739R | 6.0-24.0 | 24 | 8800 | 0.38 | 7774 | 2.88 | 63.8 | 650.8 | 51.93 | 547 | 5579.4 | 21.81 | |

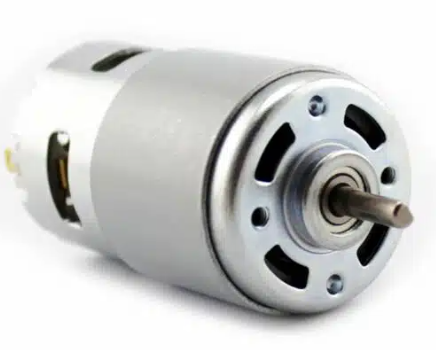

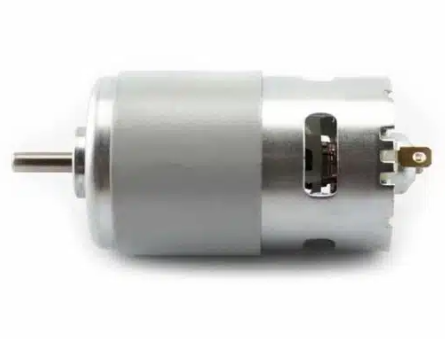

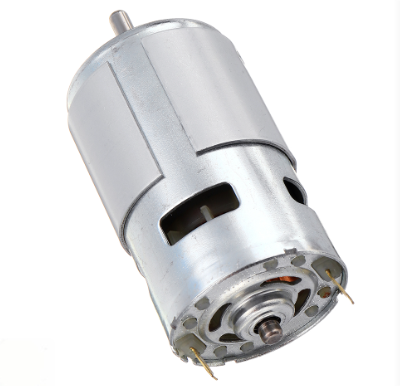

PRODUCT DISPLAY
 |
 |
 |
