NdFeB magnet precise metal brush FF-N20VA DC Micro Motor Vibration Motor for adult toys

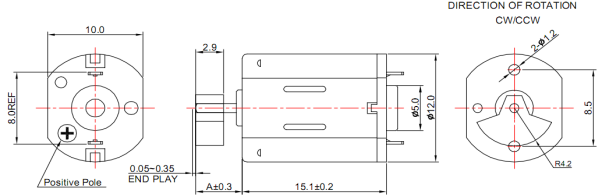

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-N20PN | 08260 | 1.5-6.0 | 3 | 8200 | 0.04 | 5920 | 0.1 | 0.17 | 1.8 | 0.11 | 0.62 | 6.3 | 0.27 |
| FF-N20PA | 10190 | 2.0-5.0 | 3 | 12100 | 0.045 | 9390 | 0.16 | 0.21 | 2.1 | 0.2 | 0.92 | 9.4 | 0.54 |
| FF-N20VA | 05240 | 3.0-12.0 | 12 | 16100 | 0.015 | 12240 | 0.06 | 0.3 | 3 | 0.37 | 1.2 | 12 | 0.21 |
| 07285 | 2.0-9.0 | 9 | 18500 | 0.02 | 15279 | 0.095 | 0.32 | 3.31 | 0.52 | 1.86 | 19 | 0.45 | |
| 10145 | 2.0-5.5 | 5 | 20000 | 0.045 | 16345 | 0.201 | 0.37 | 3.75 | 0.63 | 2.01 | 20.5 | 0.9 | |
| 05450 | 10.0-13.0 | 12 | 15200 | 0.015 | 12008 | 0.058 | 0.286 | 2.92 | 0.36 | 1.29 | 13.9 | 0.22 | |
| 10190 | 2.0-4.0 | 3 | 12100 | 0.045 | 9438 | 0.154 | 0.205 | 2.09 | 0.202 | 0.93 | 9.5 | 0.54 | |
| 09185 | 2.0-5.0 | 3.6 | 11520 | 0.025 | 9342 | 0.11 | 0.22 | 2.19 | 0.21 | 1.16 | 11.58 | 0.47 | |
| 1398 | 2.0-5.0 | 3.7 | 22633 | 0.06 | 19097 | 0.32 | 0.32 | 3.22 | 0.63 | 2.06 | 20.6 | 1.72 | |
| 08260 | 2.0-5.0 | 5 | 14600 | 0.03 | 11800 | 0.11 | 0.26 | 2.6 | 0.31 | 1.3 | 13 | 0.47 | |
| FF-N20TA | 06360 | 3.0-7.0 | 6 | 9500 | 0.013 | 7800 | 0.05 | 0.2 | 2 | 0.16 | 0.94 | 9.6 | 0.185 |
| 09168 | 3.0-7.0 | 3 | 10800 | 0.026 | 8400 | 0.104 | 0.21 | 2.1 | 0.18 | 1.3 | 10.5 | 0.418 | |
| 09180 | 3.0-7.0 | 6 | 20500 | 0.034 | 16950 | 0.16 | 0.3 | 3.1 | 0.54 | 1.75 | 17.8 | 0.77 | |
| 08225 | 3.0-7.0 | 6 | 16000 | 0.025 | 12960 | 0.11 | 0.29 | 3 | 0.4 | 1.55 | 15.8 | 0.475 | |
| 07280 | 3.0-12.0 | 12 | 26000 | 0.02 | 22000 | 0.11 | 0.29 | 3 | 0.68 | 2.06 | 21 | 0.625 | |
| 2818 | 0.8-1.5 | 12 | 34000 | 0.7 | 31000 | 1.4 | 0.2 | 2 | 0.64 | 1.6 | 16 | 6 | |
