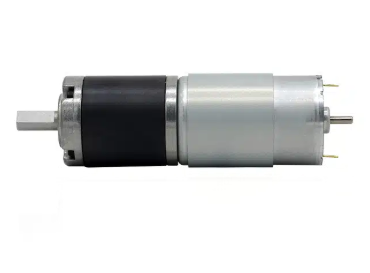

24V 36mm 36A555 planetary dc gear motor for robotic cars and smart car robot and steam toys

Short Description:

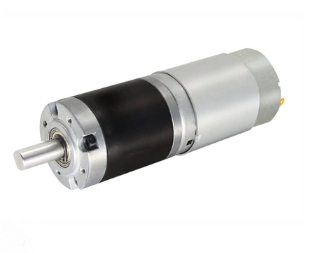

This product is a bi-directional planetary gear motor and metal or carbon brush dc motor.It has spur gears,metal Gear Case and Sleeve Bronze Bushing.It can be applied to Robotic cars,Smart car robot, STEAM toys,STEM kits.We provide professional customized services on demand, welcome to send inquiries at any time.

CONTACT NOW

Product Detail

Product Tags

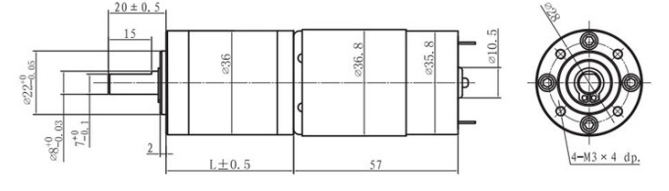

OUTLINE DRAWING： Unit:mm

GEAR BOX LENGTH (L) ： WEIGHT: ~11.5g

Gear box length L (mm)	General Reduction Ratios
50	1/6.3	1/31.6	1/40	1/158	1/254	1/792	1/1608	-	-
	1/5	1/21	1/25	1/67	1/105	1/125	1/370	1/441	1/625
	1/4.2	1/17.6	1/311	-	-	-	-	-	-
	1/3.7	1/13.4	1/49	-	-	-	-	-	-

TECHNICAL DATAS:

Ratio	Model No.	Voltage		No Load		On Load			Stall Torque
		Operating Range	Nominal Voltage	Current	Speed	Current	Torque	Speed	Torque	Current
		V	V	A	r/min	A	kg.cm	r/min	kg.cm	A
1/27	36A555	20.0-28.0	24	0.15	187	0.54	5	164	8	/
