10FN20 10mm 12mm plastic planetary gear motor 3v low noise gear motor for Drawer lock
OUTLINE DRAWING： Unit:mm

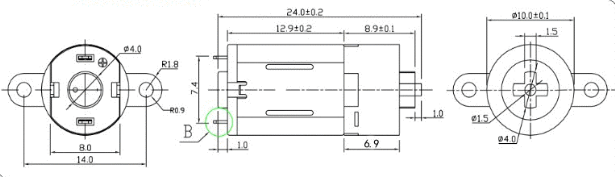

with bracket one 10mm

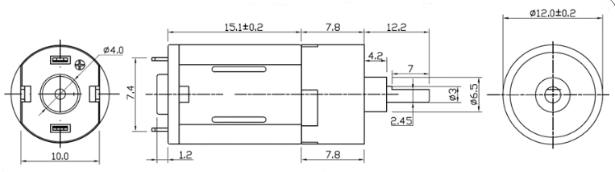

normal shaft 12mm
TECHNICAL DATASHEETS：
10mm datas
|
MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
|||||||
|
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
||||
|
V |
rpm |
A |
rpm |
A |
mN.m |
kg.cm |
W |
□N.m |
Kg.cn |
A |
|
|
10GPM10-171 |
1.5 |
33 |
0.025 |
23 |
0.05 |
3.43 |
0.035 |
0.01 |
12.24 |
0.12 |
0.14 |
|
10GPM10-171 |
3.0 |
120 |
0.04 |
89 |
0.11 |
2.94 |
0.03 |
0.02 |
17.6 |
0.18 |
0.35 |
- 12mm datas
|
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
V |
rpm |
mA |
rpm |
g.cm |
mA |
W |
gcm |
A |
|
|
2.0-4.5V |
3 |
120 |
90 |
95 |
50 |
180 |
0.17 |
250 |
0.4 |

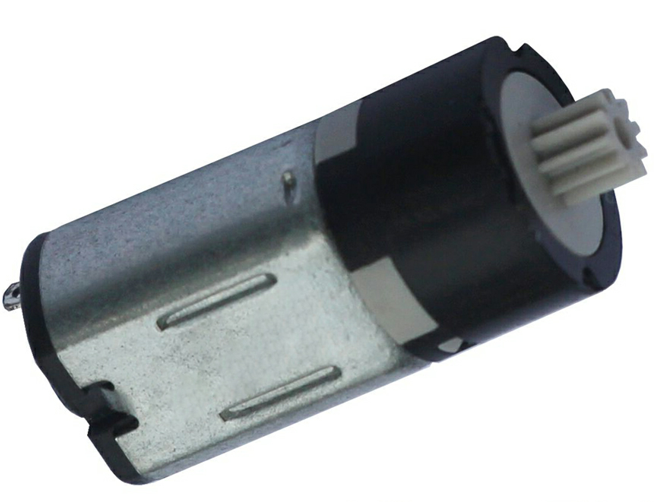

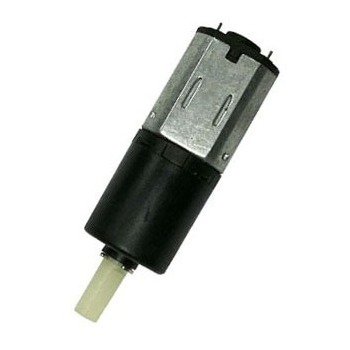

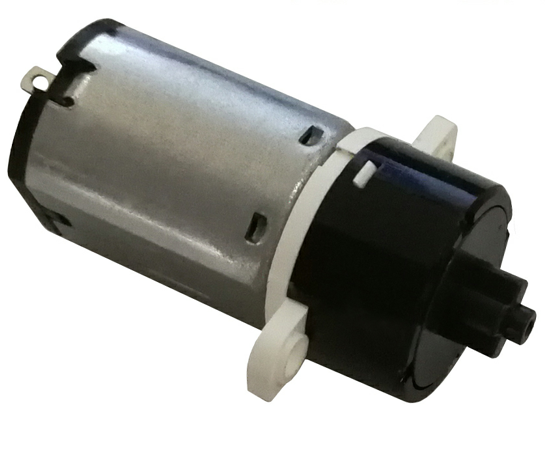

PRODUCT DISPLAY
 |
 |
 |
