5520 dc brushless motor high speed 12v Bldc motor for Therapeutic gun and Stirrer

Short Description:

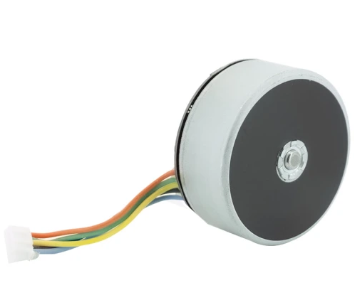

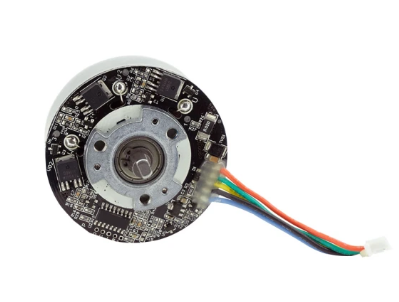

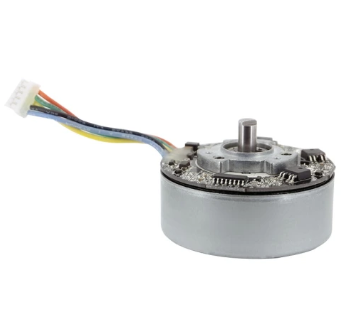

This product is a dc brushless motor.Its characteristics include High efficiency,Small volume,Low noise and Low energy consumption.It has Metal Gear Case.Its more applied to Therapeutic gun,Stirrer, Cervical massager,Adult products motor and Shaker.We provide custom services on demand,welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

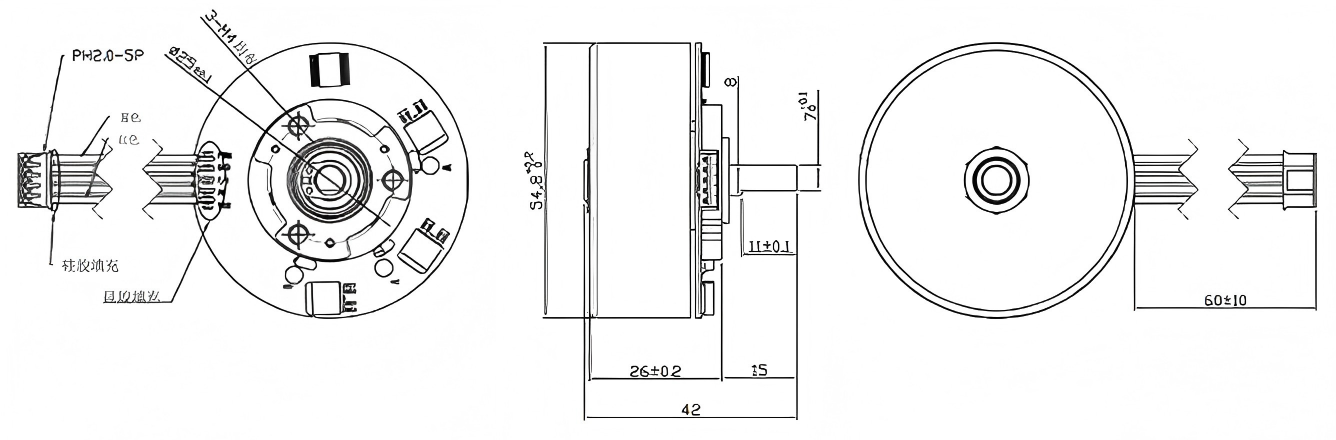

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

Featurepoint	Voltage	Current	Inputpower	Torque	Speed	Outputpower	Efficiency	Time
	V	A	W	mN.m	rpm	W	%	S
No_Load	12.00	0.636	7.636	1.6	3675	0.616	8.1	0.000
Rated	11.91	3.060	36.44	80.0	3281	27.46	75.3	33.45
Eff_max	11.89	3.522	41.88	93.9	3210	31.56	75.3	35.27
Pout_max	11.68	9.187	107.3	257.8	2317	62.53	58.3	52.40
Torque_max	11.67	9.314	108.7	378.0	199	7.875	7.2	65.72
End	11.67	9.314	108.7	378.0	199	7.875	7.2	65.72
