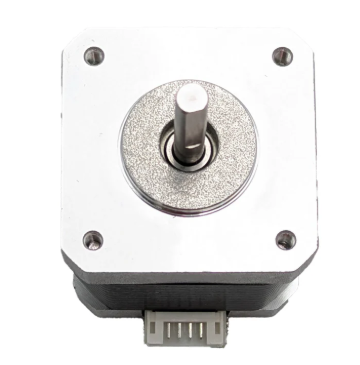

High precision 42mm 1.8 degree outlet terminal hybrid stepper motor for medical products

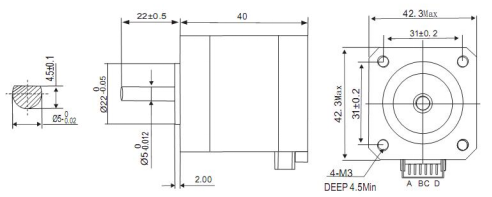

OUTLINE DRAWING： Unit:mm

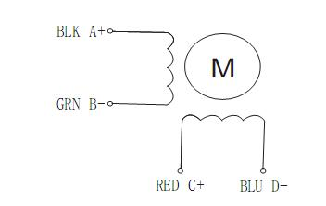

WIRING DIAGRAM： Unit:mm
Specifications：
|
ltem |
Specifications |
|
Step Angle |
1.8° |
|
Step Angle Accuracy |
±5%（tull step.noload） |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperatru Rise |
80°CMax.（rated current,2 phase on） |
|
Ambient Temperatuar |
-20℃~+50℃ |
|
Insulation Resistance |
100MΩMin.,500VDC |
|
Dielectric Strength |
500VAC/ for one minute |
|
Shaft Radial Play |
0.02Max.（450g-load) |
|
Shaft Axial Play |
0.08Max.（450g-load) |
|
Max.radial force |
28N（20mm foom the flange) |
|
Max.axial force |
10N |
Hybrid Stepping Motor Specifications：
|
ModelNo |
RatedVoltage |
Current/Phase |
Resistance/Phase |
Inductance/Phase |
HoldingTorque |
#ofLeads |
Momentofinertia |
Weight |
Orientationtorque |
Length |
|
MBI42STH40-1684A |
V |
A |
Ω |
mH |
Kg-cm |
|
g-cm² |
kg |
9-cm |
mm |
|
12/24 |
1.68 |
1.65 |
2.8 |
4.0 |
4 |
54 |
0.28 |
150 |
||

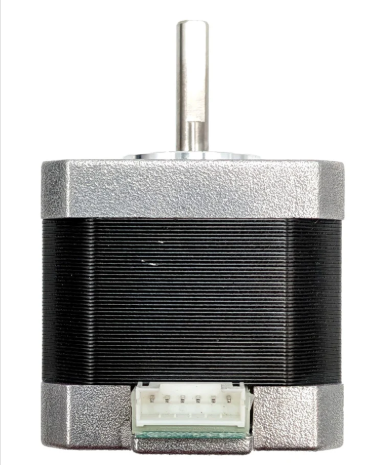

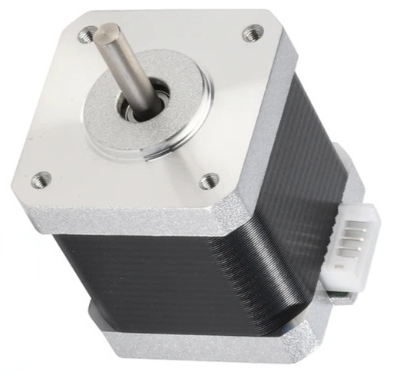

PRODUCT DISPLAY
 |
 |
 |
