3.7V 7mm low current miniature dc 0716 coreless motor for Micro Quadcopters and Vibrating massager

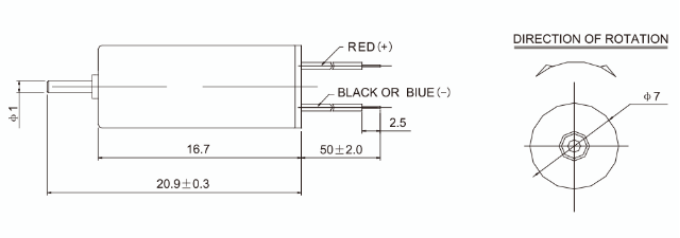

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | mNm | g.cm | A | ||
| MBI716- Q15030100 |
1.2-2.0 | 1.5 | 10000 | 0.03 | 8500 | 0.07 | 0.049 | 0.5 | 0.32 | 3.3 | 0.23 | |
| MBI716- Q30030300 |
2.5-3.5 | 3 | 30000 | 0.03 | 24000 | 0.08 | 0.039 | 0.4 | 0.19 | 2 | 0.32 | |
| MBI716- Q37100380 |
3.0-4.0 | 3.7 | 38000 | 0.1 | 33000 | 0.23 | 0.098 | 1 | 0.74 | 7.6 | 1 | |

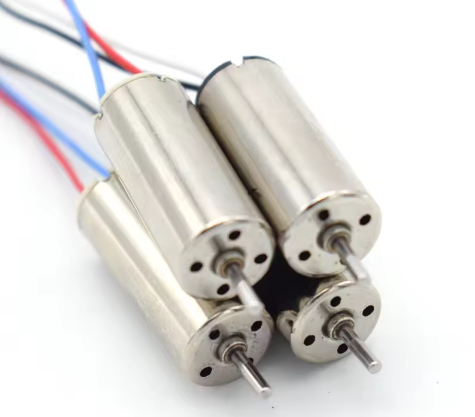

PRODUCT DISPLAY
 |
 |
 |
