0608 Hollow Cup Motor 1.5V 3V Metal Gear Case Micro dc Coreless Motor for Electric toothbrush

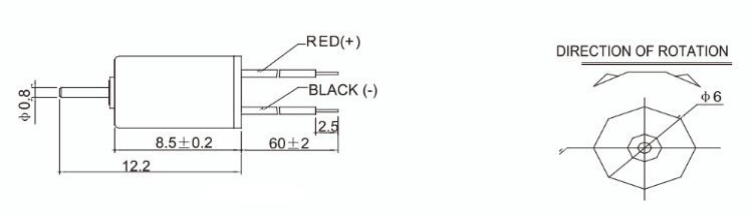

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | mNm | g.cm | A | ||
| MBI-608- Q15020110 |
1.2-2.0 | 1.5 | 11000 | 0.02 | 7500 | 0.03 | 0.004 | 0.05 | 0.014 | 0.15 | 0.04 | |
| MBI-608- Q30025250 |
2.5-3.5 | 3 | 25000 | 0.025 | 12000 | 0.07 | 0.039 | 0.4 | 0.1 | 0.8 | 0.1 | |
