0610 Hollow Cup Motor 1.5v V 4.5V High-Speed Electric dc Coreless Motor for Vibrating massager

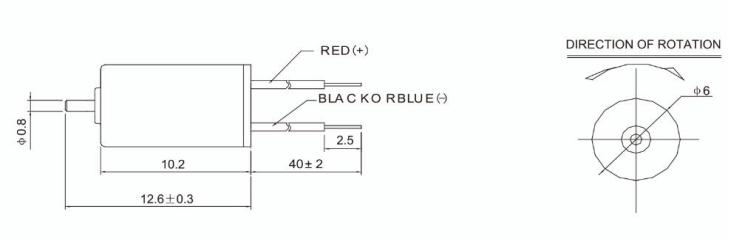

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | mNm | g.cm | A | ||
| MBI-610- Q15010100 |
1.2-2.0 | 1.5 | 10000 | 0.01 | 6000 | 0.06 | 0.019 | 0.2 | 0.049 | 0.5 | 0.045 | |
| MBI-610- Q15060270 |
1.2-2.0 | 1.5 | 27000 | 0.06 | 20000 | 0.08 | 0.029 | 0.3 | 0.11 | 1.15 | 0.13 | |
| MBI-610- Q30020200 |
2.5-3.5 | 3 | 20000 | 0.02 | 14500 | 0.05 | 0.029 | 0.3 | 0.106 | 1.09 | 0.038 | |
| MBI-610- Q45030320 |
2.0-5.0 | 4.5 | 32000 | 0.03 | 21000 | 0.08 | 0.058 | 0.6 | 0.19 | 1.74 | 0.075 | |
