RF-300CA Micro dc motor 3v 24mm electric dc motor Precision Metal Brush for RC Model

RF-300CA Micro dc motor 3v 24mm electric dc motor Precision Metal Brush for RC Model

Short Description:

This product is a micro dc motor.Its characteristics include Metal End Cap,Oil-impregnated Bearing,Precision Metal Brush and Stainless Steel Shaft.It can be applied to CD/DVD-ROM Drive,Game Controller,RC Model/Toy and Massager.We provide specialized on-demand customization services, welcome to inquire.
CONTACT NOW

Product Detail

Product Tags

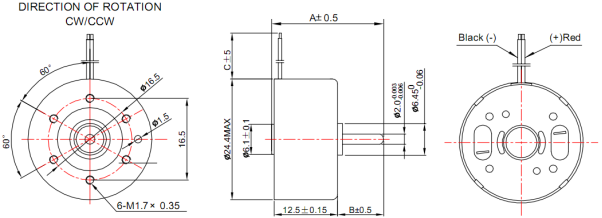

ico OUTLINE DRAWING：     Unit:mm



ico TECHNICAL DATASHEETS：

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RANGE V r/min A r/min A mNm g.cm W mNm g.cm A
RF-300CA 07900 2.0-4.0 3 1700 0.005 1200 0.02 0.2 2 0.025 0.7 7.1 0.055
12350 1.5-6.0 3 3500 0.022 2830 0.093 0.48 4.9 0.14 2.51 26 0.39
2.0-4.0 3 4300 0.03 3278 0.11 0.47 4.8 0.16 1.96 20 0.36
12395 2.0-4.0 3 3850 0.023 3080 0.088 0.41 4.2 0.13 2.06 21 0.35
13390 3.0-6.0 3 5140 0.038 4062 0.143 0.608 6.08 0.25 2.9 29 0.54
13300 1.0-6.0 2 3300 0.025 2700 0.085 0.29 3 0.083 1.67 17 0.35
10370 1.5-4.5 3.5 5490 0.035 4156 0.109 0.41 4.13 0.18 1.7 17 0.34
08770 3.0-6.0 4.5 2500 0.01 1875 0.027 0.28 2.9 0.06 1.12 11.4 0.08
1.0-4.0 2.5 1600 0.006 1209 0.018 0.2 2 0.025 0.83 8.47 0.057
09550 1.0-6.0 3 2700 0.012 2100 0.042 0.27 2.8 0.06 1.24 13 0.15
2.0-4.0 3 2600 0.03 1730 0.075 0.39 4 0.07 1.67 17 0.35
14270 0.5-4.0 1.9 3500 0.032 2740 0.12 0.38 3.9 0.11 0.76 18 42
11420 0.7-5.0 3 2900 0.017 2320 0.068 0.42 4.3 0.1 2.11 22 0.27
11410 2.0-4.0 3 3500 0.018 2765 0.069 0.4 4.1 0.12 1.92 19.6 0.26
11440 2.0-5.0 4 4700 0.04 3558 0.11 0.5 5.1 0.19 2.06 21 0.34
1.0-3.0 2 2200 0.014 1813 0.048 0.26 2.6 0.05 1.1 11.38 0.165

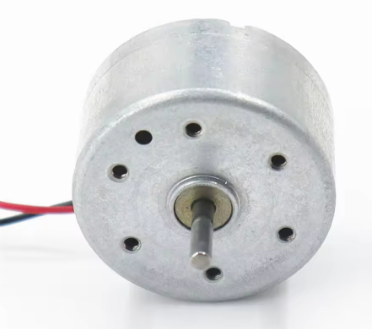

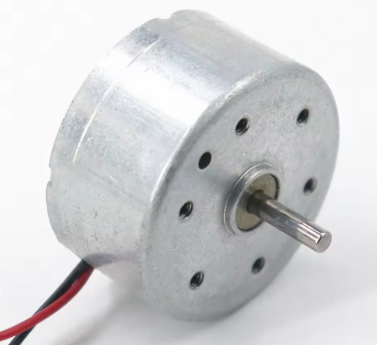

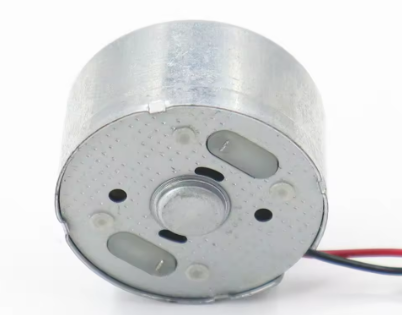

ico PRODUCT DISPLAY
