RS-380/385SA DC Motor large torque 12v 24v dc motor for printer and Automatic Cruise Control

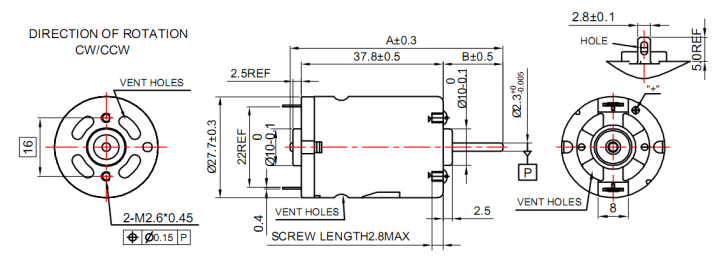

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-380PA | 2885 | 6.0-12.0 | 12 | 15000 | 0.35 | 12552 | 1.79 | 9.79 | 97.93 | 12.63 | 60 | 600.06 | 9.17 |
| 7012 | 1.0-3.0 | 2.4 | 19300 | 2.25 | 15978 | 10.82 | 9.79 | 97.9 | 16.38 | 56.88 | 568.8 | 52.05 | |
| 4239 | 3.0-6.0 | 6 | 16000 | 0.75 | 13463 | 3.98 | 11.35 | 113.5 | 16 | 7.15 | 71.59 | 21.12 | |
| RS-380SA | 3749 | 3.0-12.0 | 6 | 11000 | 0.39 | 9522 | 2.51 | 9.74 | 99.4 | 9.72 | 72.55 | 740 | 16.2 |
| 12350 | 12.0-28.0 | 24 | 7400 | 0.06 | 6000 | 0.27 | 6.3 | 64 | 3.9 | 33.1 | 338 | 1.2 | |
| 3270 | 3.0-12.0 | 6 | 9200 | 0.26 | 7800 | 1.4 | 7.4 | 75 | 6 | 48.4 | 493 | 7.8 | |
| 3564 | 6.0-12.0 | 12 | 20501 | 0.45 | 17931 | 3.15 | 11.5 | 115.34 | 21.25 | 92 | 920.07 | 21.99 | |
| 15265 | 6.0-24.0 | 24 | 9080 | 0.08 | 7730 | 0.4 | 9.36 | 95.5 | 7.52 | 59.3 | 605 | 2.49 | |
| RS-380PA | 16116 | 24.0-40.0 | 40 | 18300 | 0.14 | 15524 | 0.78 | 13 | 130 | 21.1 | 85.71 | 857.1 | 4.38 |
| RS-385SA | 11210 | 6.0-12.0 | 12 | 3100 | 0.03 | 2439 | 0.11 | 3.3 | 33.7 | 0.85 | 15.7 | 160 | 0.41 |
| 12200 | 6.0-12.0 | 12 | 3400 | 0.09 | 2700 | 0.21 | 3.9 | 40 | 1.13 | 20.8 | 212 | 0.8 | |
| 2546 | 6.0-15.0 | 12 | 16000 | 0.34 | 13800 | 1.5 | 9.3 | 95 | 13.4 | 68 | 693 | 8.8 | |
| 10250 | 18.0-30.0 | 24 | 5460 | 0.05 | 4250 | 0.16 | 4.7 | 47 | 2.05 | 22 | 220 | 0.57 | |
| 15106 | 6.0-12.0 | 12 | 6300 | 0.1 | 5007 | 0.39 | 4.87 | 48.7 | 2.55 | 23.73 | 237.3 | 1.5 | |
| 12175 | 6.0-24 | 24 | 7000 | 0.06 | 5750 | 0.25 | 6.52 | 66.5 | 3.91 | 36.8 | 375 | 1.27 | |
