FF-130 DC Vibration Motor 3v motor High-Speed Mini DC Motor for Adult Toy and Massager

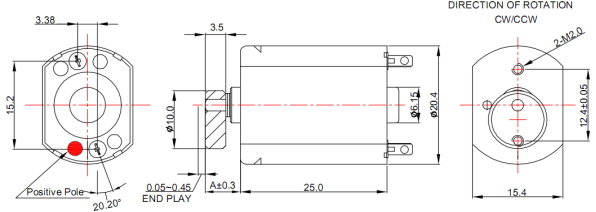

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | Start Voltage | RATED | STALL CURRENT | |||||
| OPERATING | NOMINAL | SPEED | CURRENT | LOAD | |||||
| RANGE | V | V | r/min | A | (Unit:mm) | A | |||
| FF-130PA-18130 φ10.0*6.0 | 1.5-4.0 | 3 | 0.8 | 5700 | 0.28 | φ10.0*6.0 | 1.7 | ||
| FF-130PA-2065 φ10.0*3.5 | 1.0-4.0 | 3 | 0.8 | 10500 | 0.9 | φ10.0*3.5 | 3.8 | ||

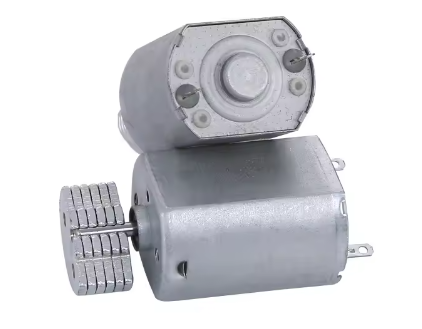

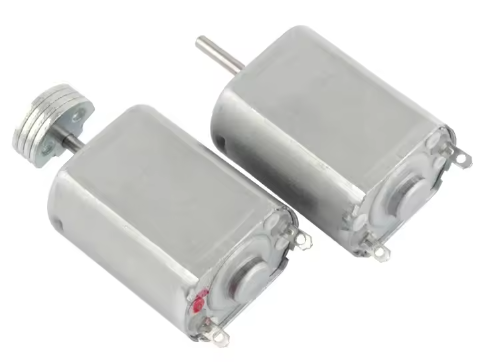

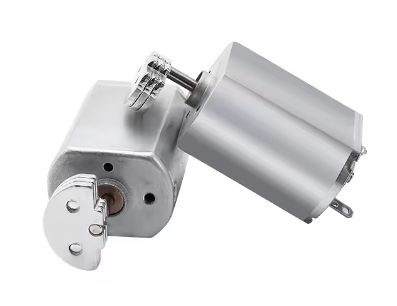

PRODUCT DISPLAY
 |
 |
 |
