FF-030PA/PK 3.5v dc Vibrating motor 15mm Strong Vibration Engine Mini motor for Adult Toy and Beauty Apparatus

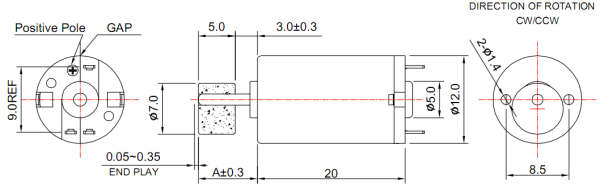

OUTLINE DRAWING： Unit:mm
TECHNICAL DATAS:
| MODEL | VOLTAGE | Start Voltage | RATED | STALL CURRENT | |||||
| OPERATING | NOMINAL | SPEED | CURRENT | LOAD | |||||
| RANGE | V | V | r/min | A | (Unit:mm) | A | |||
| FF-030PK-10190 R6.0*9.6 | 3.0-4.0 | 3.5 | 1 | 5600 | 0.2 | R6.0*9.6 | 0.55 | ||
| FF-030PK-12140 R8.0*7.2 | 3.0-4.0 | 3.5 | 1 | 6000 | 0.55 | R8.0*7.2 | 1.10 | ||
| FF-030PK-12130 R7.0*4.8 | 2.0-3.0 | 2.5 | 1 | 6100 | 0.25 | R7.0*4.8 | 0.85 | ||
| FF-030PK-11150 R9.0*6.0 | 2.0-4.5 | 4 | 1.3 | 6000 | 0.5 | R9.0*6.0 | 1.10 | ||

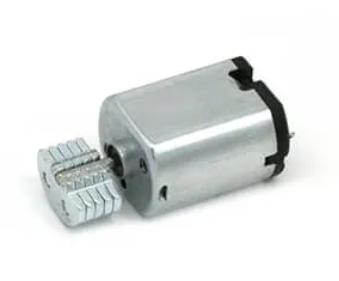

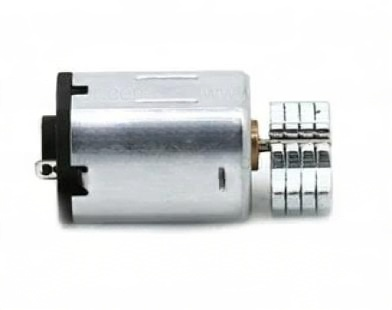

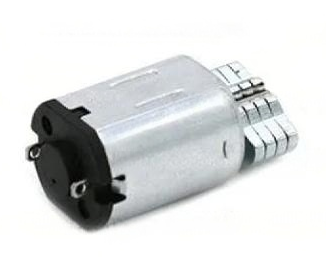

PRODUCT DISPLAY
 |
 |
 |
