1.5v 7.4v motor RF-1220CA Vibration dc motor and Eccentric Wheel for Adult Toy and Massager

Short Description:

This product is a vibration motor.Its characteristics include Copper Eccentric Wheel,Precious Metal Brush,Stainless Steel Shaft and Eccentric Wheel.It can be applied to Adult Toy,Massager.We provide specialized on-demand customization services, welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

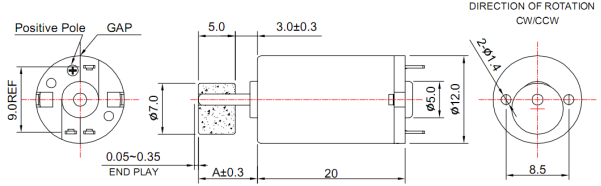

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL	VOLTAGE		Start Voltage	RATED			STALL CURRENT
	OPERATING	NOMINAL	Start Voltage	SPEED	CURRENT	LOAD	STALL CURRENT
	RANGE	V	V	r/min	A	(Unit:mm)	A
RF-1220CA-1856 φ7.0*5.0	1.5-2.0	1.5	0.6	12800	0.8	φ7.0*5.0	2.3
RF-1220CA-06360 R6*4.8	3.0-8.0	7.4	1.8	7500	0.14	R6*4.8	0.28

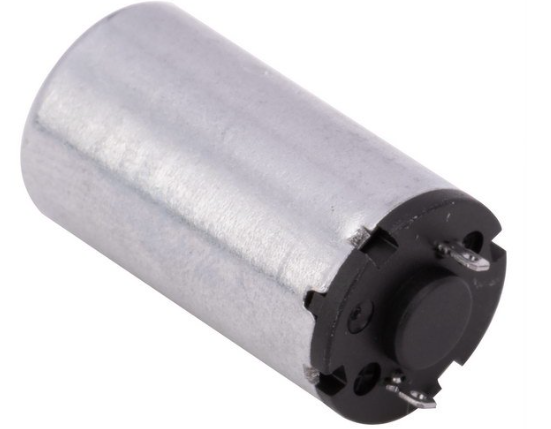

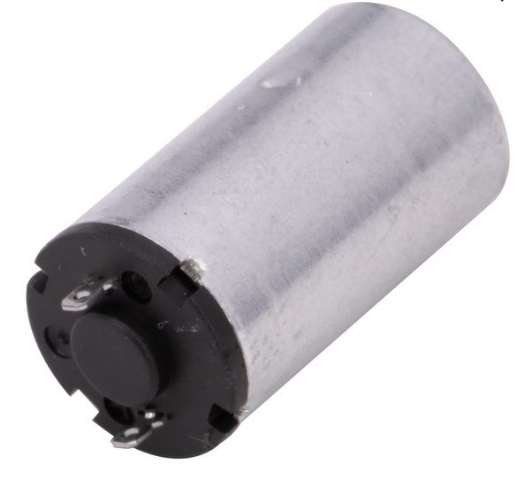

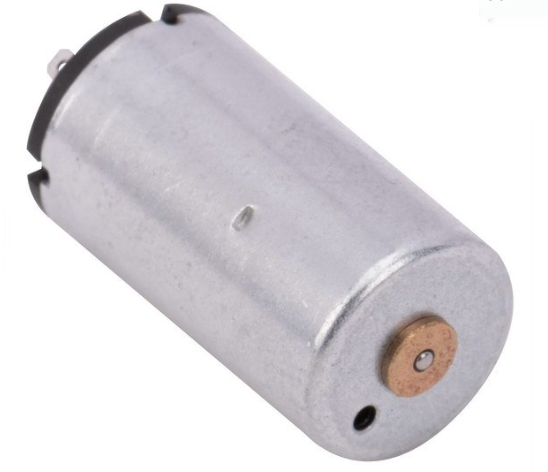

PRODUCT DISPLAY

Previous: FF-030PA/PK 3.5v dc Vibrating motor 15mm Strong Vibration Engine Mini motor for Adult Toy and Beauty Apparatus

Next: 716 DC Small Electric Micro Vibration Motor Low Current motor for Steering wheel

All of which are RoHS,REACH compliant, have both an UL and a CE certificate, We have own brands MBI and RS, also we could do OEM for you, and we are ISO9001:2015 & IATF16949:2016 certified.
