12V 24V 42A775 high torque precision planetary gear motor with 42 reducer gear box for robotic cars

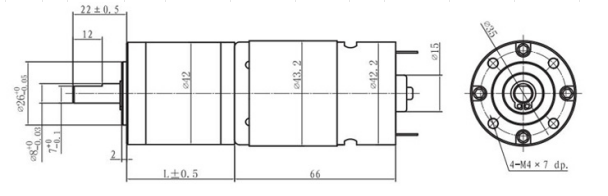

OUTLINE DRAWING： Unit:mm
GEAR BOX LENGTH (L)： WEIGHT: ~11.5g
|
Gear box length (mm) |
General Reduction Ratios |
||||||||
|
61.6 |
1/189 |
1/264 |
- |
- |
- |
- |
- |
- |
- |
|
1/269 |
1/512 |
- |
- |
- |
- |
- |
- |
- |
|
|
1/721 |
- |
- |
- |
- |
- |
- |
- |
- |
|
|
73.8 |
1/699 |
1/977 |
- |
- |
- |
- |
- |
- |
- |
|
1/1367 |
1/1911 |
- |
- |
- |
- |
- |
- |
- |
|
|
1/2672 |
1/3689 |
- |
- |
- |
- |
- |
- |
- |
|
TECHNICAL DATAS:
|
Ratio |
Model No. |
Voltage |
No Load |
On Load |
Stall Torque |
|||||
|
Operating |
Nominal |
Current |
Speed |
Current |
Torque |
Speed |
Torque |
Current |
||
|
V |
V |
A |
r/min |
A |
kg.cm |
r/min |
kg.cm |
A |
||
|
1/189 |
12V7000R |
3.0-12.0 |
12 |
/ |
37 |
/ |
5.92 |
29.6 |
/ |
/ |
|
1/264 |
3.0-12.0 |
12 |
/ |
27 |
/ |
8.27 |
21.2 |
/ |
/ |
|
|
1/369 |
3.0-12.0 |
12 |
/ |
19 |
/ |
10 |
15.2 |
/ |
/ |
|
|
1/512 |
3.0-12.0 |
12 |
/ |
14 |
/ |
10 |
10.9 |
/ |
/ |
|
|
1/712 |
3.0-12.0 |
12 |
/ |
10 |
/ |
10 |
7.8 |
/ |
/ |
|
|
1/699 |
24V6500R |
6.0-24.0 |
24 |
/ |
10 |
/ |
10 |
8.0 |
/ |
/ |
|
1/977 |
6.0-24.0 |
24 |
/ |
7 |
/ |
10 |
5.7 |
/ |
/ |
|
|
1/1367 |
6.0-24.0 |
24 |
/ |
5 |
/ |
10 |
4.1 |
/ |
/ |
|
|
1/1911 |
6.0-24.0 |
24 |
/ |
4 |
/ |
10 |
2.9 |
/ |
/ |
|
|
1/2672 |
6.0-24.0 |
24 |
/ |
3 |
/ |
10 |
2.1 |
/ |
/ |
|
|
1/3639 |
6.0-24.0 |
24 |
/ |
2 |
/ |
10 |
1.5 |
/ |
/ |
|
PRODUCT DISPLAY
 |
 |
 |
