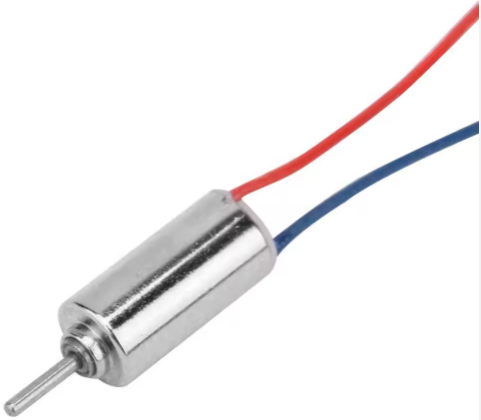

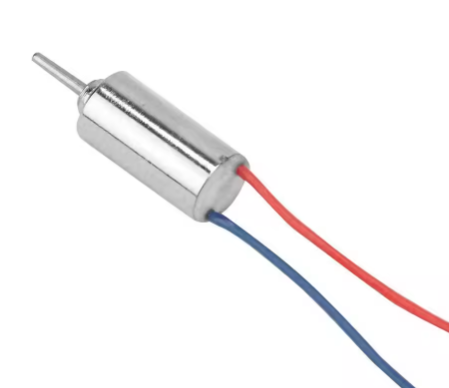

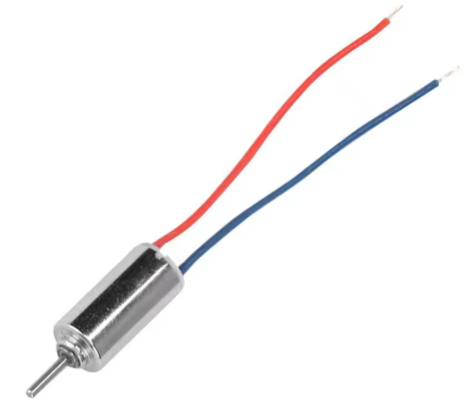

0408 4mm*8mm mini dc motor coreless long shaft 3v micro coreless motor for Beauty instrument products

Short Description:

This product is a micro coreless motor.Its characteristics include High efficiency,Small volume,Low noise and High controllability.It has Metal Gear Case.Its more applied to Beauty instrument products, Electric toothbrush,Beauty instrument products,Vibrating massager, Breast enhancement instrument.We provide custom services on demand, feel free to inquire.

CONTACT NOW

Product Detail

Product Tags

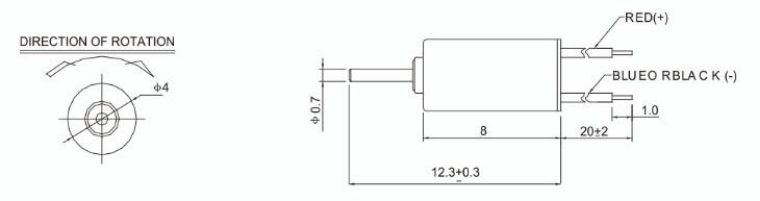

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		TORQUE		CURRENT
	RANGE	V	r/min	A	r/min	A	mNm	g.cm	mNm	g.cm	A
MBI408- Q15040300	1.2-2.0	1.5	30000	0.04	18000	0.08	0.019	0.2	0.05	0.5	0.15
MBI408- Q30020350	2.5-3.5	3	35000	0.02	17000	0.06	0.019	0.2	0.39	0.4	0.09
