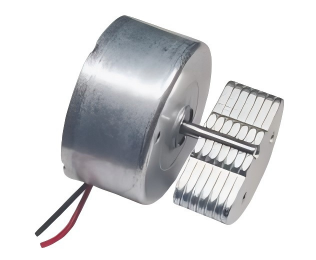

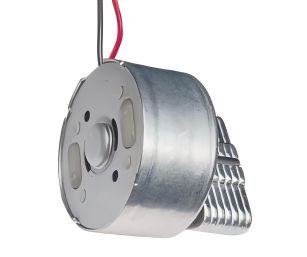

RF-300 Micro DC Vibrating Motor 3v Electric Vibration motor for Massager and Game Controller

Short Description:

This product is a vibration motor.Its characteristics include Galvanized Disk Eccentric Wheel, Precious Metal Brush,Pancake Shape and Oil-impregnated Bearing.It can be applied to Massager,Game Controller and Beauty Apparatus.We provide specialized on-demand customization services, welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

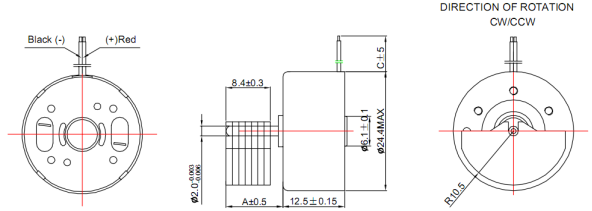

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL	VOLTAGE		Start Voltage	RATED			STALL CURRENT
	OPERATING	NOMINAL	Start Voltage	SPEED	CURRENT	LOAD	STALL CURRENT
	RANGE	V	V	r/min	A	(Unit:mm)	A
RF-300CA-12370 R10.5*8.4	1.0-3.0	2	0.8	1750	0.14	R10.5*8.4	0.28

PRODUCT DISPLAY
