RC-280 12V DC Micro Vibration Motor powerful vibrating motor for Car Power Seat

Short Description:

This product is a vibration motor.Its characteristics include Copper Eccentric Wheel,Carbonl Brush,Plastic End Cap and Carbon Steel Shaft.It can be applied to Massager and Car Power Seat.We provide specialized on-demand customization services, welcome to inquire.

CONTACT NOW

Product Detail

Product Tags

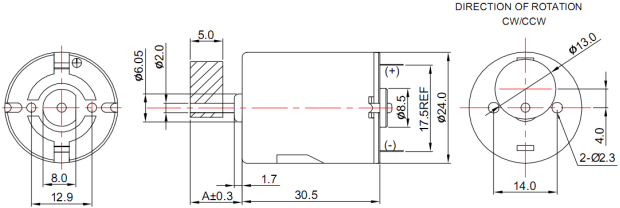

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

MODEL	VOLTAGE		Start Voltage	RATED			STALL CURRENT
	OPERATING	NOMINAL	Start Voltage	SPEED	CURRENT	LOAD	STALL CURRENT
	RANGE	V	V	r/min	A	(Unit:mm)	A
RC-280SA-06360 R6.5*5.0	6.0-12.0	12	2	5000	0.07	R6.5*5.0	0.43

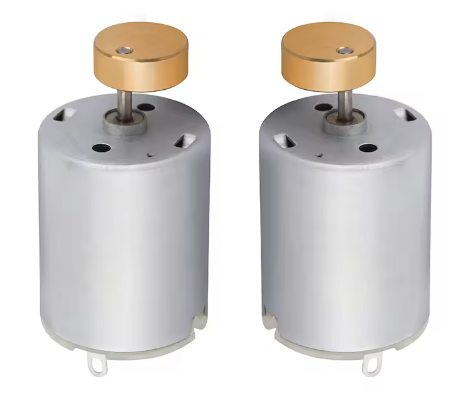

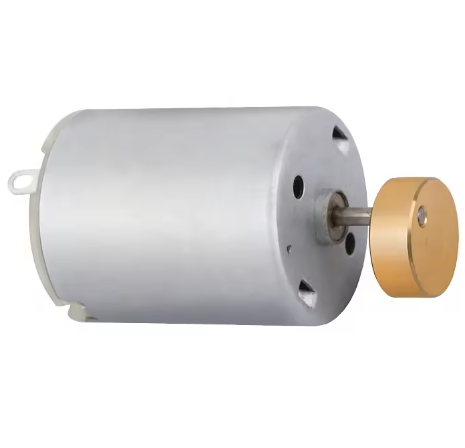

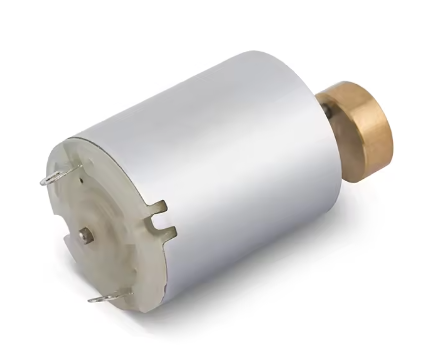

PRODUCT DISPLAY
