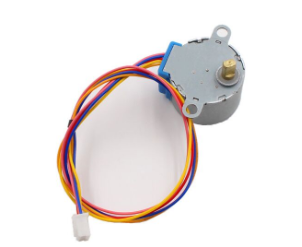

5V 12V 28BYJ48 stepper motor with driver board micro dc stepping motor for electronic instruments

Short Description:

This product is a 4-phase 5wire micro stepper motor.It weighs 40 grams.Domestic appliances is its typical application field, including air-conditioning, refrigerators,intelligent sanitary and automatic door lock.It is also often used in CCTV monitors and electronic instruments.We provide specialized on-demand customization services, feel free to inquire if you have any questions.

CONTACT NOW

Product Detail

Product Tags

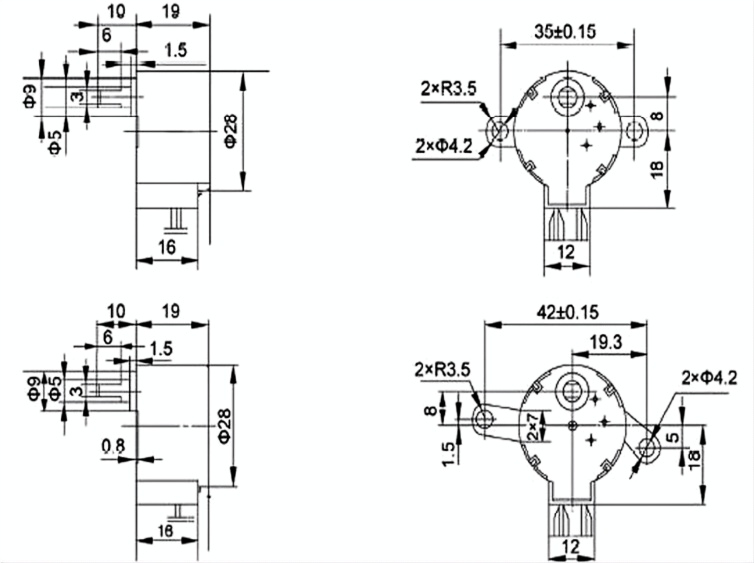

Mechanical Dimensions：

Performance Parameters：

Model	RatedVoltage(DCV	ResistanceDPhase (t25C)	OperatiooFrequency (PPS)	PulinTorque (mNm)	DetertTorque (mNm)	MaxFreeoadPul-inFecueneyPPS	MaxFreeloadPul-outFreqengy(PPS	TempestureRise (K)	NoisedB (A)	StepAngie(1-2phase	InsulationClass
28BYJ48	5	60	100	2294	229.4	2500	2900	S40	≤40	5.625'/64	A
	12	130	100	244.1	229.4	2500	2900	S40	S40
	12	200	100	234.3	229.4	≥500	≥900	≤40	≤40
	12	300	100	235	224.5	2500	2800	≤40	S40

PRODUCT DISPLAY
