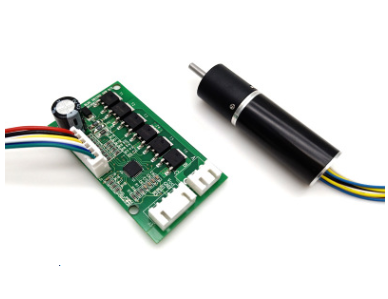

16A1636 dc micro planetary gear motor 5volt reduction gear box for smart trash can lid

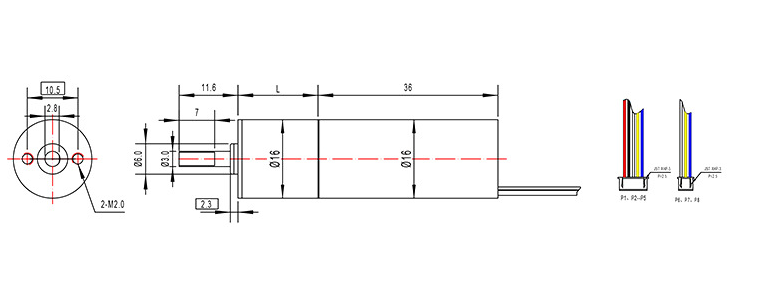

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
|
Model |
RatedVoltage(VDC) |
No-LoadCurrent (mAMAX) |
LoadCurrent (mAMAX) |
OutputSpeed(rpm) |
UseTorque (g-cm) |
GearRatio |
GearBoxLength (mm) |
TotalLength (mm) |
|
MBI42A775-16 |
5.0 |
50 |
180 |
375 |
130 |
16 |
14.8 |
41.8 |
|
MBI42A775-24 |
5.0 |
50 |
180 |
250 |
195 |
24 |
||
|
MBI42A775-36 |
5.0 |
50 |
180 |
166.5 |
291 |
36 |
||
|
MBI42A775-64 |
5.0 |
55 |
190 |
93.5 |
467.2 |
64 |
18.1 |
45.1 |
|
MBI42A775-96 |
5.0 |
55 |
190 |
62.5 |
700.8 |
96 |
||
|
MBI42A775-144 |
5.0 |
55 |
190 |
41.5 |
1051.2 |
144 |
||
|
MBI42A775-216 |
5.0 |
55 |
190 |
27.5 |
1576.8 |
216 |
||
|
MBI42A775-256 |
5.0 |
60 |
200 |
23.5 |
1689 |
256 |
21.4 |
48.4 |
|
MBI42A775-384 |
5.0 |
60 |
200 |
15.5 |
2534 |
384 |
||
|
MBI42A775-576 |
5.0 |
60 |
200 |
10.5 |
3802 |
576 |
||
|
MBI42A775-864 |
5.0 |
60 |
200 |
7.0 |
5702 |
864 |
||
|
MBI42A775-1296 |
5.0 |
60 |
200 |
4.5 |
8554 |
1296 |

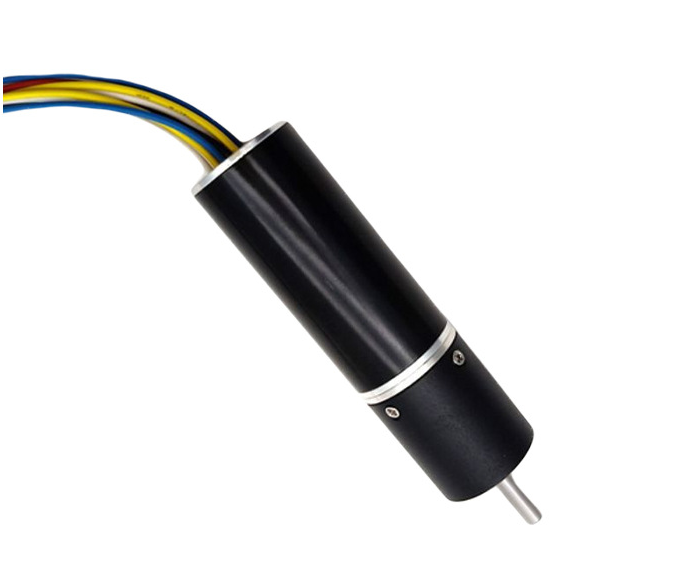

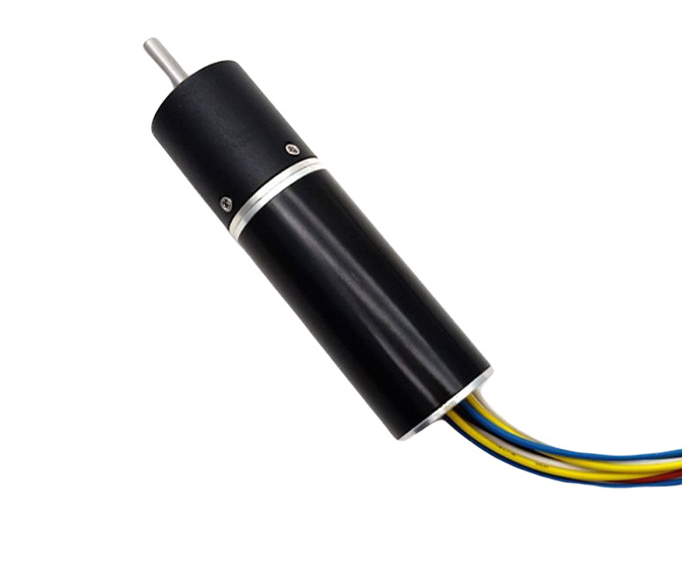

PRODUCT DISPLAY
 |
 |
 |
