FF-030PA/PK DC Motor 5v 15mm Micro dc motor high speed Permanent Magnet for Electric Lock

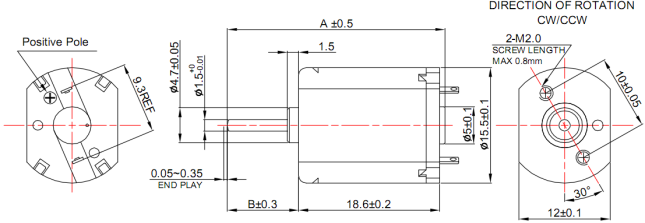

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-030TA | 11190 | 2.0-4.0 | 3.7 | 8500 | 0.03 | 7026 | 0.14 | 0.41 | 4.08 | 0.29 | 2.35 | 23.53 | 0.66 |
| 08265 | 3.5-12.0 | 12 | 17000 | 0.057 | 13431 | 0.21 | 0.91 | 9.08 | 1.25 | 4.32 | 43.24 | 0.79 | |
| FF-030PA | 11155 | 2.0-4.0 | 3 | 7200 | 0.045 | 5500 | 0.17 | 0.49 | 5 | 0.28 | 2.06 | 21 | 0.59 |
| 09180 | 1.0-5.0 | 5 | 10500 | 0.046 | 8140 | 0.16 | 0.44 | 4.5 | 0.37 | 1.96 | 20 | 0.55 | |
| 10180 | 3.5-6.0 | 5 | 11700 | 0.05 | 9230 | 0.19 | 0.05 | 5.1 | 0.48 | 2.35 | 24 | 0.7 | |
| 09210 | 1.0-6.0 | 2.4 | 4800 | 0.035 | 3400 | 0.094 | 0.22 | 2.3 | 0.08 | 0.88 | 9 | 2 | |
| 09210 | 1.0-6.0 | 4.7 | 9800 | 0.045 | 7400 | 0.15 | 0.4 | 4 | 0.3 | 1.7 | 17 | 0.47 | |
| 08250 | 1.0-6.0 | 2.5 | 4100 | 0.028 | 2900 | 0.071 | 0.2 | 2.1 | 0.062 | 0.72 | 7.4 | 0.18 | |
| 1592 | 2.0-4.0 | 3.5 | 14300 | 0.09 | 12500 | 0.3 | 0.49 | 5 | 0.64 | 3.92 | 40 | 2 | |
| FF-030SA | 10175 | 4.0-7.0 | 6 | 14600 | 0.048 | 11680 | 0.188 | 0.53 | 5.4 | 1.02 | 2.67 | 27.2 | 0.75 |
| 10180 | 3.0-6.0 | 5 | 11400 | 0.06 | 8780 | 0.198 | 0.6 | 6.1 | 0.77 | 2.59 | 26.4 | 0.66 | |
| 08270 | 6.0-9.0 | 8 | 12500 | 0.03 | 10000 | 0.124 | 0.52 | 5.3 | 0.85 | 2.61 | 26.6 | 0.5 | |
| FF-030PK | 09220 | 3.0-5.0 | 5 | 9600 | 0.028 | 7797 | 0.12 | 0.42 | 4.18 | 0.33 | 0.22 | 22.27 | 0.52 |
| 08250 | 1.0-6.0 | 6 | 10500 | 0.041 | 8020 | 0.13 | 0.43 | 4.4 | 0.36 | 1.81 | 19 | 0.43 | |
| 12130 | 2.0-4.0 | 3 | 10000 | 0.046 | 8156 | 0.2 | 0.42 | 4.18 | 0.34 | 2.27 | 22.68 | 0.88 | |
| 05440 | 3.5-12.0 | 12 | 11000 | 0.02 | 7800 | 0.065 | 0.49 | 5 | 0.4 | 1.67 | 17 | 0.18 | |
