RF/RK-020H dc motor 3v 4.5v 17mm High-Speed Metal Brushed DC motor for Electric Shaver and Toy

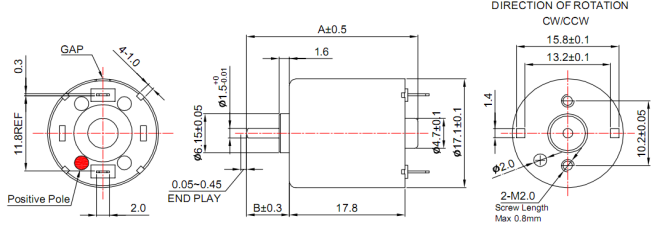

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RF-020CH | 11190 | 2.0-5.0 | 4.5 | 13500 | 0.05 | 10800 | 0.2 | 0.44 | 4.5 | 0.5 | 2.21 | 22.5 | 0.8 |
| 12255 | 5.0-8.0 | 7 | 11300 | 0.042 | 9492 | 0.211 | 0.9 | 9.2 | 0.894 | 5.63 | 57.4 | 1.1 | |
| 14215 | 3.0-5.0 | 4.5 | 10900 | 0.055 | 8940 | 0.25 | 0.61 | 6.2 | 0.56 | 3.4 | 34.2 | 1.15 | |
| 09280 | 9.0-13.0 | 12 | 22300 | 0.042 | 18500 | 0.2 | 0.37 | 3.73 | 1.23 | 3.7 | 38 | 0.97 | |
| 10195 | 2.0-5.0 | 4.5 | 12700 | 0.04 | 10287 | 0.175 | 0.387 | 3.95 | 0.413 | 2.02 | 20.6 | 0.75 | |
| 09215 | 3.0-5.0 | 4.5 | 12600 | 0.06 | 8800 | 0.17 | 0.39 | 3.9 | 0.34 | 0.13 | 13 | 0.48 | |
| 10360 | 3.0-12.0 | 12.0 | 16800 | 0.032 | 14101 | 0.17 | 0.81 | 8.06 | 1.17 | 5.02 | 50.16 | 0.89 | |
| 10200 | 3.0-5.0 | 4.5 | 12600 | 0.05 | 10000 | 0.16 | 0.39 | 3.9 | 0.4 | 0.19 | 19 | 0.73 | |
| RK-020SH | 18145 | 2.0-4.0 | 3.0 | 8800 | 0.066 | 7384 | 0.35 | 0.93 | 9.28 | 0.71 | 5.77 | 57.68 | 1.83 |
| 18125 | 3.0-6.0 | 5.0 | 17000 | 0.14 | 14000 | 0.66 | 1.27 | 13 | 1.9 | 7.35 | 75 | 3.1 | |
| 13230 | 3.0-7.0 | 6.0 | 11000 | 0.05 | 10000 | 0.15 | 0.49 | 5 | 0.51 | 4.9 | 50 | 1.2 | |
| 11340 | 3.0-12.0 | 12.0 | 14800 | 0.055 | 12006 | 0.24 | 1.47 | 14.7 | 1.81 | 7.78 | 77.87 | 1.03 | |
| 17140 | 2.0-8.0 | 7.0 | 21500 | 0.13 | 18200 | 0.68 | 1.32 | 13.5 | 2.49 | 8.3 | 85 | 3.6 | |
| 10360 | 3.0-12.0 | 12.0 | 14000 | 0.07 | 13000 | 0.13 | 0.5 | 5 | 0.67 | 5.88 | 60 | 0.9 | |
