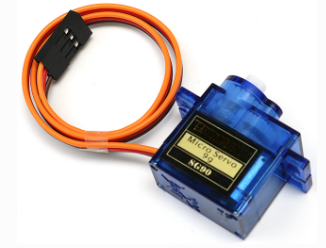

SG90 Micro Servo motor 180 Degree rotation servo motor for Smart car and Fixed wing

Short Description:

This product is a micro servo motor.Its characteristics include High control precision,Compact structure,Low noise and Strong load capacity.It has Semimetal Gear Case.Its more applied to Smart car, Fixed wing,Robotic arm and Spider robot.We provide custom services on demand, feel free to inquire.

CONTACT NOW

Product Detail

Product Tags

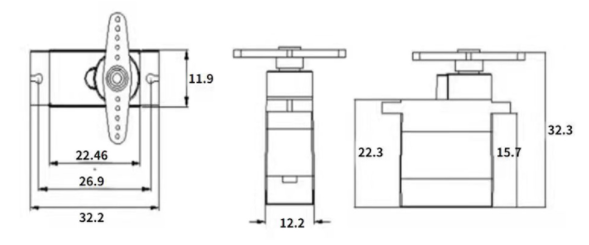

OUTLINE DRAWING： Unit:mm

TECHNICAL DATASHEETS：

Productname	SG90
Product size	22.412.522.8mm	weight：10g±5%
Working voltage	4.8V	6V
No-load speed	0.09sec/60°	0.09sec/60°
No-load current	90mA	90mA
Stall torque	1.3kg.cm	1.6kg.cm
Stall current	750A±10%	750A±10%
Control signal	Pulse width modification
Pulse	500~2500usec
Midpoint position	1500usec（Backward error）≤1°
Rotation angle	180°±3°(when 500~2500usec)
Dead zone width	8usec
