0.9 Degree 42mm two phase hybrid Stepper Motor for Medical products and Mobile robot

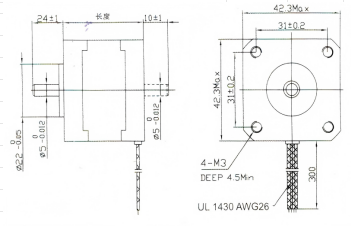

OUTLINE DRAWING： Unit:mm

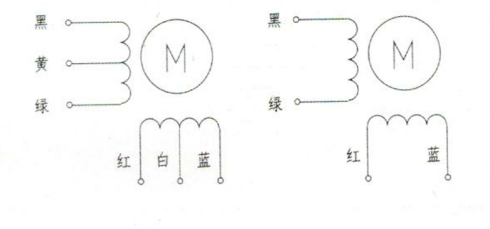

WIRING DIAGRAM： Unit:mm
Specifications：
|
ltem |
Specifications |
|
Step Angle |
1.8° |
|
Step Angle Accuracy |
±5%（tull step.noload） |
|
Resistance Accuracy |
±10% |
|
Inductance Accuracy |
±20% |
|
Temperatru Rise |
80°CMax.（rated current,2 phase on） |
|
Ambient Temperatuar |
-20℃~+50℃ |
|
Insulation Resistance |
100MΩMin.,500VDC |
|
Dielectric Strength |
500VAC/ for one minute |
|
Shaft Radial Play |
0.02Max.（450g-load) |
|
Shaft Axial Play |
0.08Max.（450g-load) |
|
Max.radial force |
28N （20mm foom the flange) |
|
Max.axial force |
10N |
Hybrid Stepping Motor Specifications：
|
ModelNo |
RatedVoltage |
Current/Phase |
Resistance/Phase |
Inductance/Phase |
HoldingTorque |
#ofLeads |
Momentofinertia |
Weinght |
Orientationtorque |
Length |
|
|
Single output shaft |
Dual output shaft |
V |
A |
Ω. |
mH |
g-cm |
|
g-cm² |
kg |
g-cm |
mm |
|
MBI42STH34-0956MA |
MBI42STH34-0956MB |
4 |
0.95 |
4.2 |
4 |
1.58 |
6 |
35 |
0.22 |
200 |
33 |
|
MBI42STH34-0606MA |
MBI42STH34-0956MB |
6 |
0.6 |
10 |
9.5 |
1.58 |
6 |
||||
|
MBI42STH34-0316MA |
MBI42STH34-0316MB |
12 |
0.31 |
38.5 |
33 |
1.58 |
6 |
||||
|
MBI42STH34-1334MA |
MBI42STH34-1334MB |
2.8 |
1.33 |
2.1 |
4.2 |
2.2 |
4 |
||||
|
MBI42STH40-1206MA |
MBI42STH40-1206MB |
4 |
1.2 |
3.3 |
3.4 |
2.59 |
6 |
54 |
0.28 |
220 |
40 |
|
MBI42STH40-0806MA |
MBI42STH40-0806MB |
6 |
0.8 |
7.5 |
6.7 |
2.59 |
6 |
||||
|
MBI42STH40-0406MA |
MBI42STH40-0406MB |
12 |
0.4 |
30 |
30 |
2.59 |
6 |
||||
|
MBI42STH40-1684MA |
MBI42STH40-1684MB |
2.8 |
1.68 |
1.65 |
3.2 |
3.3 |
4 |
||||
|
MBI42STH48-1206MA |
MBI42STH48-1206MB |
4 |
1.2 |
3.3 |
4 |
3.17 |
6 |
68 |
0.35 |
250 |
48 |
|
MBI42STH48-0806MA |
MBI42STH48-0806MB |
6 |
0.8 |
7.5 |
10 |
3.17 |
6 |
||||
|
MBI42STH48-0406MA |
MBI42STH48-0406MB |
12 |
0.4 |
30 |
38 |
3.17 |
6 |
||||
|
MBI42STH48-1684MA |
MBI42STH48-1684MB |
2.8 |
1.68 |
1.65 |
4.1 |
4.4 |
4 |
||||

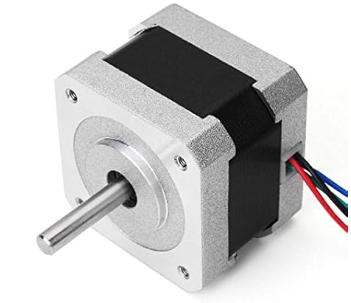

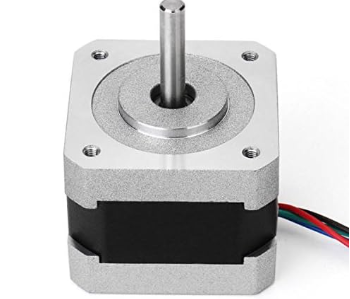

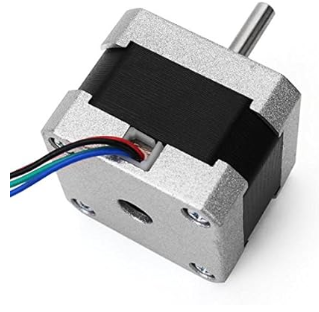

PRODUCT DISPLAY
 |
 |
 |
