30 series AC Shaded pole Motor High Speed ac motor manufacturers for Oven and Broiler

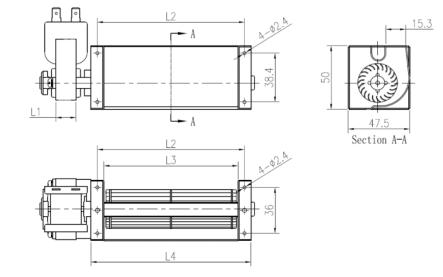

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Model | Dimension | Reference Performance | ||||||
| L1 | L2 | L3 | L4 | Speed (rpm) |
Max.Air Flow (m³/h) |
Max.Air Pressure (Pa) |
Power (W) |
|
| MBI 30×100 | 10~16 | 113.5 | 103.5 | 123.5 | 2000-3300 | 30 | 20 | ≤15 |
| MBI 30×250 | 10~20 | 258 | 248 | 268 | 1600-3200 | 75 | 20 | ≤20 |
| MBI 30×300 | 10~20 | 312.6 | 302.6 | 322.6 | 1600-3200 | 90 | 20 | ≤25 |
| MBI 30×350 | 10~20 | 362.6 | 352.6 | 372.6 | 1600-3200 | 105 | 20 | ≤30 |
| Voltage: 100-240V; Frequency: 50/60Hz | ||||||||
