4818 BL DC Motor 24V high speed and efficiency dc brushless motor for Electric shaver

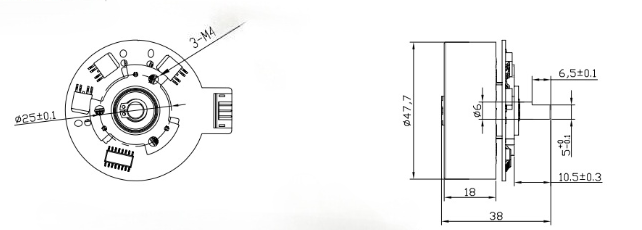

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Feature point | Voltage | Current | Input power | Torque | Speed | Output power | Efficiency | Time |
| V | A | W | mN.m | rpm | W | % | S | |
| No_Load | 24.07 | 0.173 | 4.167 | 2.2 | 3445 | 0.801 | 19.2 | 0.000 |
| Rated | 24.00 | 1.317 | 31.59 | 80.0 | 2865 | 23.99 | 75.9 | 33.37 |
| Eff_max | 24.01 | 0.955 | 22.93 | 56.1 | 3023 | 17.74 | 77.4 | 29.56 |
| Pout_max | 23.91 | 3.541 | 84.65 | 216.1 | 1901 | 43.01 | 50.8 | 48.60 |
| Torque_max | 23.82 | 5.887 | 140.2 | 343.3 | 414 | 14.88 | 10.6 | 61.92 |
| End | 23.82 | 5.887 | 140.2 | 343.3 | 414 | 14.88 | 10.6 | 61.92 |
