7125-7135 Dual-axis Servo motor 4.8v 8.4v metal brushless motor for Car model and Robotic arm

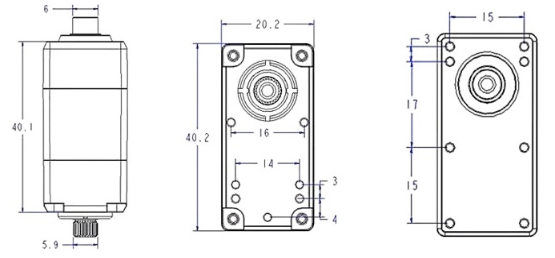

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| Product name | Product size | Working voltage | No-load speed | No-load current | Stall torque | Stall current | Control signal | Pulse | Midpoint position | Rotation angle | Dead zone width |
| 7120 | 40.0*20.5*40.5mm weight：56g±5% |
4.8V | 0.18sec/60° | 210mA | 20.5kg.cm | 2100mA±10% | Pulsewidth modification |
500~2500usec | 1500usec |
180°±3°(when500～2500usec) | 5usec |
| 8.4V | 0.14sec/60° | 260mA | 22.8kg.cm | 2700mA±10% | |||||||
| 7125 | 40.0*20.5*40.5mm weight：56g±5% |
4.8V | 0.18sec/60° | 140mA | 23.5kg.cm | 2600mA±10% | Pulsewidth modification |
500~2500usec | 1500usec |
180°±3°(when500～2500usec) | 5usec |
| 8.4V | 0.14sec/60° | 200mA | 26.8kg.cm | 3400mA±10% | |||||||
| 7135 | 40.0*20.5*40.5mm weight：56g±5% |
4.8V | 0.32sec/60° | 140mA | 32.7kg.cm | 2600mA±10% | Pulsewidth modification |
500~2500usec | 1500usec |
180°±3°(when500～2500usec) | 5usec |
| 8.4V | 0.22sec/60° | 200mA | 35.2kg.cm | 3400mA±10% |
