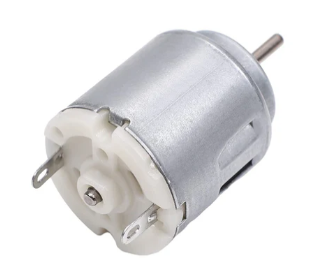

RE/RC-260A 3V 4.5V DC Motor micro brush dc electric motor High Speed for Motorized Plastic Model

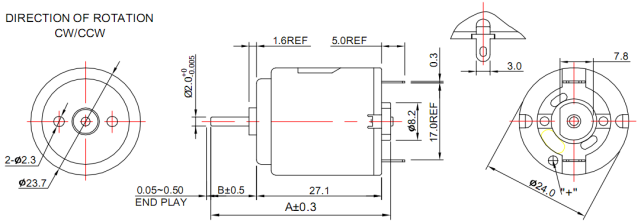

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RC-260RA | 10350 | 8.0-12.0 | 12 | 10000 | 0.04 | 8040 | 0.16 | 1.27 | 13 | 1.07 | 6.47 | 66 | 0.67 |
| 2670 | 3.0-4.5 | 4.5 | 18500 | 0.3 | 15290 | 1.43 | 2.14 | 21.8 | 3.41 | 12.3 | 125 | 6.8 | |
| 18130 | 4.5-6.0 | 4.5 | 9800 | 0.14 | 7750 | 0.53 | 1.48 | 15.1 | 1.2 | 7.06 | 72 | 2 | |
| 4.5-6.0 | 6 | 13600 | 0.17 | 10840 | 0.67 | 1.71 | 17.5 | 1.94 | 8.44 | 86 | 2.62 | ||
| RE-260RA | 2670 | 1.5-3.0 | 1.5 | 6300 | 0.16 | 5040 | 0.64 | 0.98 | 10 | 0.52 | 4.9 | 50 | 2.56 |
| 1.5-3.0 | 3 | 12300 | 0.2 | 10200 | 0.97 | 1.5 | 15.2 | 1.6 | 8.77 | 90 | 4.73 | ||
| 2295 | 1.5-3.0 | 3 | 9400 | 0.15 | 7600 | 0.64 | 1.33 | 13.3 | 1.04 | 7 | 70 | 2.7 | |
| 18130 | 1.5-4.5 | 1.5 | 3300 | 0.075 | 2490 | 0.23 | 0.6 | 6.1 | 0.16 | 2.45 | 25 | 0.72 | |
| 1.5-3.0 | 3 | 6900 | 0.095 | 5500 | 0.36 | 0.99 | 9.9 | 0.56 | 4.8 | 48 | 1.4 | ||
| RC-260SA | 08550 | 6.0-24.0 | 24 | 10000 | 0.033 | 8100 | 0.14 | 2.05 | 20.9 | 1.98 | 10.8 | 110 | 0.6 |
| 2295 | 3.0-6.0 | 4.5 | 10100 | 0.15 | 8600 | 0.7 | 2 | 20 | 1.76 | 13.6 | 136 | 3.9 | |
| 2670 | 3.0-6.0 | 4.5 | 13800 | 0.25 | 11700 | 1.1 | 2.5 | 25 | 3 | 17 | 170 | 6.7 | |
| 07675 | 6.0-24.0 | 24 | 8000 | 0.028 | 6216 | 0.1 | 2.4 | 24.5 | 1.19 | 10.8 | 110 | 0.34 | |

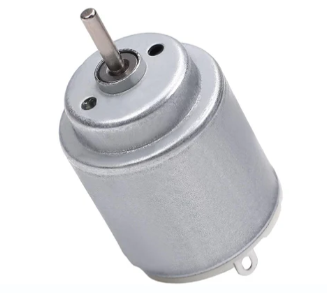

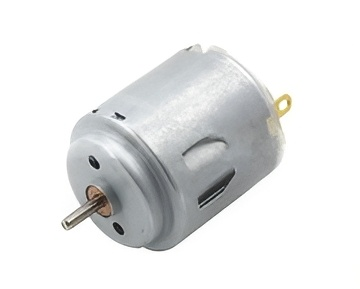

PRODUCT DISPLAY
 |
 |
 |
