FS-5516H dc motor 230v high speed micro dc motor for Rotary Tool and Mixer

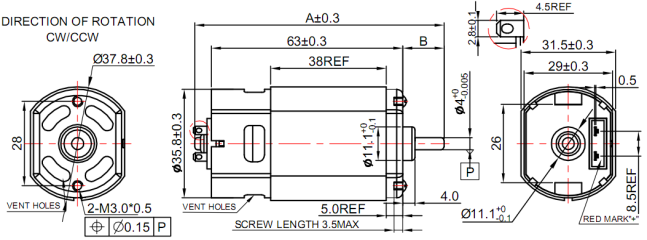

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FS-5516SH | 08364R | AC Rect. | 230 | 11200 | 0.12 | 7297 | 0.39 | 45.33 | 462.4 | 33.88 | 123.2 | 1257 | 0.98 |
| 08400R | AC Rect. | 220 | 10100 | 0.06 | 6628 | 0.28 | 37.52 | 382.7 | 25.33 | 91.93 | 938 | 0.66 | |
