RS-520H dc motor 5V Micro dc motor Electric Motor for Robot and Toy

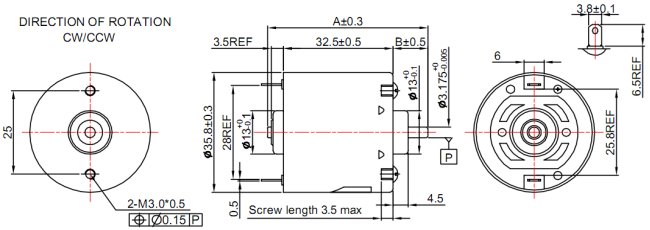

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-520SH | 14230 | 3.0-6.0 | 5 | 2000 | 0.18 | 1350 | 0.38 | 3.6 | 36.72 | 0.5 | 10.98 | 112 | 0.78 |
