FK-290A DC Motor 12v 24v electric brush micro dc motor for Vending Machine and RC Model

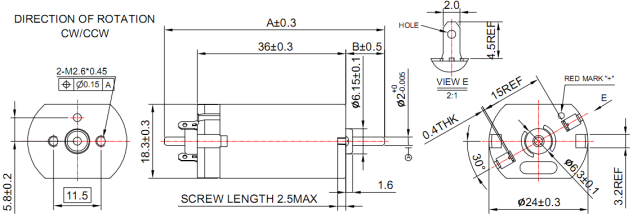

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FK-290PY | 051000 | 100-120 | 100 | 6800 | 0.05 | 5470 | 0.021 | 2.01 | 20.5 | 1.15 | 10.3 | 105 | 0.085 |
| FK-290SA | 4039 | 1.5-4.5 | 3 | 9200 | 0.27 | 7934 | 1.69 | 4.3 | 43.8 | 3.59 | 31.4 | 320 | 10.6 |
| 18167 | 6.0-24.0 | 24 | 17000 | 0.11 | 14683 | 0.7 | 7.7 | 77 | 11.84 | 56.4 | 564.9 | 4.41 | |
| 13338 | 6.0-24.0 | 24 | 8500 | 0.07 | 6995 | 0.33 | 6.6 | 66 | 2.91 | 37 | 370.7 | 1.51 | |
| 6.0-12.0 | 12 | 4100 | 0.04 | 3303 | 0.19 | 4 | 40.8 | 1.32 | 21 | 214.2 | 0.92 | ||
| FK-290PA | 15230 | 6.0-12.0 | 12 | 5900 | 0.05 | 4938 | 0.26 | 3.9 | 39 | 2.03 | 24.05 | 240.5 | 1.32 |
| 2598 | 3.0-6.0 | 6 | 7500 | 0.14 | 6294 | 0.73 | 4.4 | 44 | 2.91 | 27.4 | 274.6 | 3.81 | |
| 18170 | 6.0-24.0 | 24 | 17000 | 0.11 | 14378 | 0.7 | 7.5 | 76.5 | 11.53 | 54.9 | 560 | 4.4 | |
