FC-280A DC Motor Mini 12V 24V high speed electric motor Varistor for option for Retractable Rearview Mirror

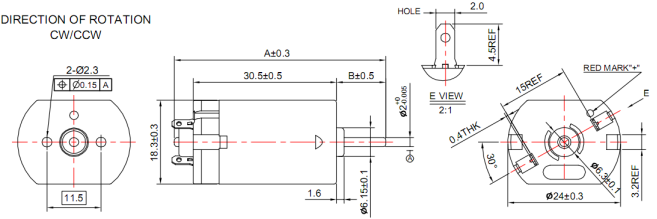

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FC-280PA | 20136 | 6.0-12.0 | 12 | 12005 | 0.096 | 10460 | 0.65 | 4.89 | 48.91 | 5.26 | 38 | 380.04 | 4.4 |
| 18165 | 9.0-15.0 | 12 | 11000 | 0.1 | 9330 | 0.56 | 4.24 | 43.2 | 4.13 | 27.9 | 285 | 3.12 | |
| 18160 | 6.0-12.0 | 12 | 10377 | 0.072 | 9091 | 0.28 | 4.336 | 43.36 | 4.05 | 34.9 | 349.88 | 3.61 | |
| FC-280SA | 4525 | 1.0-2.0 | 1.2 | 8670 | 0.73 | 6560 | 2.24 | 1.74 | 17.7 | 1.3 | 9.61 | 98 | 8.43 |
| 20155 | 6.0-14.0 | 13.5 | 13800 | 0.12 | 11610 | 0.48 | 3.18 | 32.4 | 4.2 | 30.7 | 313 | 3.42 | |
| 21130 | 6.0-12.0 | 12 | 13480 | 0.11 | 11706 | 0.73 | 4.6 | 46.9 | 5.69 | 35.3 | 360 | 4.8 | |
| 21145 | 6.0-12.0 | 12 | 12500 | 0.11 | 10775 | 0.69 | 5.2 | 53.04 | 5.83 | 37.46 | 382 | 4.29 | |
| 15200 | 3.0-6.0 | 6 | 4716 | 0.05 | 3851 | 0.22 | 2.302 | 23.02 | 0.91 | 12.5 | 125.55 | 0.99 | |
| 18163 | 6.0-13.0 | 13 | 11800 | 0.12 | 9747 | 0.57 | 4.9 | 50 | 5.05 | 28.4 | 289 | 2.7 | |
| 11320 | 6.0-24.0 | 24 | 11500 | 0.059 | 9513 | 0.28 | 4.335 | 43.35 | 4.23 | 25 | 250.89 | 1.34 | |
| 8470 | 6.0-24.0 | 24 | 8250 | 0.04 | 6308 | 0.15 | 3.03 | 30.9 | 1.89 | 13 | 133 | 0.53 | |
| 16200 | 10.0-15.0 | 12 | 10000 | 0.07 | 8470 | 0.39 | 3.3 | 33.7 | 2.92 | 21.6 | 220 | 2.15 | |
| 3543 | 2.4-3.0 | 2.4 | 9200 | 0.3 | 7730 | 1.58 | 2.75 | 28.1 | 2.22 | 17.2 | 175 | 8.27 | |
| 2865 | 2.4-3.0 | 3 | 7700 | 0.2 | 6420 | 1 | 2.53 | 25.8 | 1.7 | 15.2 | 155 | 5 | |
| 16245 | 6.0-12.0 | 12 | 7300 | 0.06 | 6027 | 0.29 | 3.4 | 34.6 | 2.15 | 19.5 | 198 | 1.35 | |
