FT-260A DC Motor 12v micro dc motor high speed 12000r for Hair Trimmer and Rearview Mirror

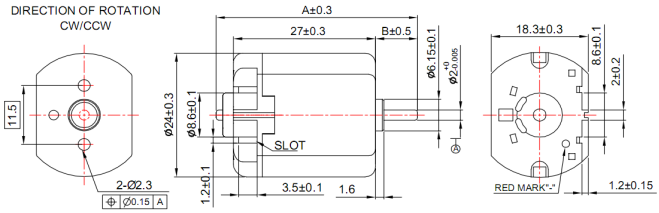

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FT-260SA | 17188 | 6.0-12.0 | 12 | 12000 | 0.11 | 10074 | 0.57 | 3.9 | 39.8 | 4.15 | 24.5 | 250 | 3 |
| 19134 | 6.0-12.0 | 8.4 | 11500 | 0.13 | 9463 | 0.6 | 3.3 | 33.66 | 3.27 | 18.6 | 190 | 2.8 | |
