FC-260A DC Motor 6v 12v mini micro dc motor High-Speed Carbon Steel Shaft for Door Lock Actuator

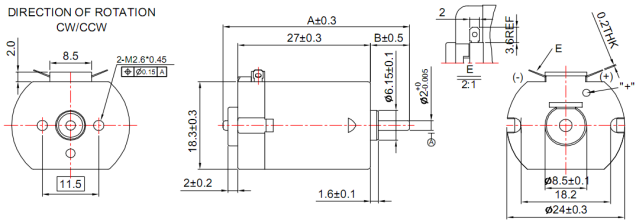

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FC-260RA | 10400 | 6.0-15.0 | 12 | 8800 | 0.04 | 6990 | 0.15 | 1.41 | 14.4 | 1.03 | 6.87 | 70 | 0.6 |
| FC-260SA | 2670 | 1.5-4.0 | 3 | 12240 | 0.29 | 9530 | 1.04 | 1.595 | 15.95 | 1.6 | 7.3 | 73 | 3.7 |
| 3.0-6.0 | 4.5 | 14000 | 0.27 | 11660 | 1.34 | 2.94 | 30 | 3.59 | 17.6 | 180 | 6.7 | ||
| 3.0-6.0 | 4.5 | 23000 | 0.36 | 10750 | 1.24 | 2.8 | 28.5 | 3.2 | 16.5 | 165 | 5.95 | ||
| 14265 | 6.0-12.0 | 12 | 8700 | 0.05 | 7330 | 0.27 | 2.47 | 25.2 | 1.9 | 15.7 | 160.1 | 1.42 | |
| 2670 | 3.0-6.0 | 4.5 | 13000 | 0.26 | 10750 | 1.24 | 2.85 | 28.53 | 3.2 | 16.5 | 165 | 5.95 | |
| 10300 | 6.0-24.0 | 24 | 17300 | 0.07 | 14100 | 0.31 | 2.84 | 29 | 4.19 | 15.5 | 158 | 1.38 | |
| 6.0-26.5 | 26.5 | 19000 | 0.08 | 15470 | 0.35 | 3.19 | 32.5 | 5.16 | 17.2 | 175 | 1.54 | ||
| 12250 | 6.0-28.0 | 24 | 20000 | 0.09 | 16700 | 0.45 | 3.4 | 34.7 | 5.94 | 20.6 | 210 | 2.3 | |
| 18120 | 3.0-6.0 | 6 | 10400 | 0.15 | 8486 | 0.6 | 2.48 | 25.3 | 2.24 | 14.4 | 147 | 2.94 | |
| 15215 | 6.0-12.0 | 12 | 10500 | 0.06 | 8894 | 0.33 | 2.7 | 27.5 | 2.52 | 17.7 | 181 | 1.83 | |
| 16120 | 4.5-9.0 | 6 | 10300 | 0.15 | 8400 | 0.66 | 2.87 | 28.7 | 2.5 | 15.6 | 156 | 2.95 | |
| 16185 | 6.0-12.0 | 12 | 12300 | 0.08 | 10596 | 0.47 | 3.26 | 33.3 | 3.62 | 23.5 | 240 | 2.9 | |
