FK-260A 24*18.3mm 6V 12V DC Micro motor High Quality High Speed mini motor for Electric Shaver

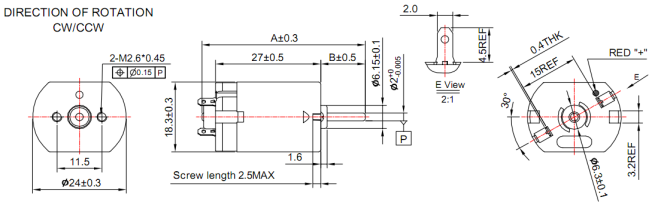

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FK-260SA | 18120 | 3.0-6.0 | 6 | 10400 | 0.15 | 8486 | 0.6 | 2.48 | 25.3 | 2.24 | 14.4 | 147 | 2.94 |
| 21120 | 4.5-9.0 | 4.5 | 7650 | 0.15 | 6160 | 0.6 | 2.376 | 23.76 | 1.5 | 12.2 | 122 | 3 | |
| 12300 | 10.0-15.0 | 12 | 8700 | 0.042 | 7220 | 0.2 | 1.96 | 19.9 | 1.48 | 11.5 | 117 | 1 | |
| 09450 | 12.0-24.0 | 12 | 5800 | 0.027 | 4630 | 0.11 | 1.45 | 14.8 | 0.7 | 7.16 | 73 | 0.42 | |
| 2490 | 3.0-9.0 | 3 | 7000 | 0.17 | 5590 | 0.68 | 1.906 | 19.06 | 1.1 | 9.5 | 95 | 2.7 | |
| 10280 | 6.0-12.0 | 12 | 8600 | 0.05 | 7300 | 0.17 | 1.47 | 15 | 1.12 | 9.7 | 99 | 0.84 | |
| 10300 | 6.0-24.0 | 24 | 17300 | 0.07 | 14100 | 0.31 | 2.84 | 29 | 4.19 | 15.5 | 158 | 1.38 | |
