FK-280A DC Motor 18.3*24mm 12v 24v high speed micro dc motor for Hair Trimmer and Curler

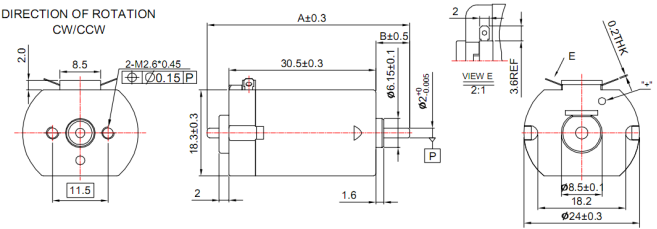

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FK-280PA | 18165 | 10.0-15.0 | 12 | 10500 | 0.09 | 9000 | 0.54 | 4.12 | 42 | 3.88 | 28.9 | 295 | 3.25 |
| 20150 | 10.0-15.0 | 12 | 12000 | 0.1 | 10330 | 0.62 | 4.45 | 45.4 | 4.81 | 31.9 | 325 | 3.8 | |
| FK-280SA | 20155 | 6.0-14.0 | 13.5 | 13800 | 0.12 | 11610 | 0.48 | 3.18 | 32.4 | 4.2 | 30.7 | 313 | 3.42 |
| 20150 | 10.0-15.0 | 12 | 13500 | 0.1 | 11700 | 0.65 | 3.8 | 38.7 | 4.64 | 28.4 | 290 | 4.2 | |
| 19130 | 6.0-24.0 | 15 | 19300 | 0.115 | 16796 | 0.76 | 4.478 | 44.78 | 7.73 | 34.51 | 345.13 | 5.09 | |
| 13240 | 6.0-12.0 | 12 | 7300 | 0.07 | 5749 | 0.26 | 3.251 | 32.51 | 1.92 | 15.3 | 153.03 | 1.92 | |
| 18165 | 10.0-15.0 | 12 | 12300 | 0.075 | 10700 | 0.5 | 3.42 | 34.9 | 3.83 | 26.3 | 268.4 | 3.36 | |
| 15170 | 6.0-12.0 | 12 | 10580 | 0.08 | 8788 | 0.39 | 3.288 | 32.88 | 2.97 | 19.4 | 194.12 | 1.91 | |
| 22125 | 6.0-12.0 | 12 | 14539 | 0.134 | 12494 | 0.82 | 5.346 | 53.46 | 6.86 | 38 | 380.08 | 5.01 | |
| 11340 | 10.0-15.0 | 13.5 | 6280 | 0.045 | 5090 | 0.2 | 3.08 | 31.4 | 1.64 | 16.2 | 165 | 0.85 | |
| 8470 | 6.0-24.0 | 24 | 8250 | 0.04 | 6308 | 0.15 | 3.03 | 30.9 | 1.89 | 13 | 133 | 0.53 | |
