RF/RK-520CA/TB DC Motor 33MM 6V 12VBrushed mico dc motor for Vengding Machine and Egg Mixer

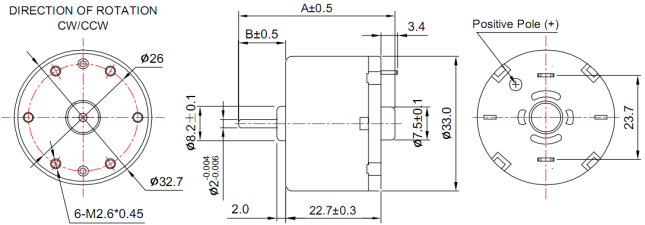

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RF-520CA | 17410 | 9.0-15.0 | 12 | 5500 | 0.037 | 4565 | 0.21 | 3.3 | 33 | 1.55 | 19.4 | 194 | 1.05 |
| 10900 | 20.0-28.0 | 24 | 3100 | 0.007 | 2600 | 0.02 | 1 | 10 | 0.267 | 6.21 | 62.1 | 0.088 | |
| RK-520CA | 20214 | 4.0-7.0 | 6 | 5500 | 0.054 | 4730 | 0.326 | 2.2 | 22.4 | 1.087 | 15.7 | 160 | 2 |
| 18262 | 9.0-13.0 | 12 | 9100 | 0.061 | 7917 | 0.404 | 3.19 | 32.5 | 2.639 | 24.5 | 250 | 2.7 | |
| RF-520TB | 17360 | 6.0-12.0 | 12 | 6300 | 0.03 | 5406 | 0.18 | 2.98 | 30.4 | 1.76 | 21.9 | 223.5 | 1.17 |
| 17410 | 3.0-6.0 | 4.5 | 2075 | 0.015 | 1783 | 0.09 | 1.66 | 16.66 | 0.31 | 11.83 | 118.39 | 0.55 | |
| 22160 | 3.0-6.0 | 6 | 6931 | 0.065 | 5898 | 0.38 | 2.601 | 26.01 | 1.58 | 17.45 | 174.52 | 2.18 | |
| 20230 | 3.0-6.0 | 6 | 5000 | 0.04 | 4500 | 0.16 | 1.96 | 20 | 0.92 | 20.5 | 210 | 2.2 | |
| RK-520TB | 24160 | 3.0-6.0 | 6 | 7186 | 0.086 | 6187 | 0.53 | 3.16 | 31.64 | 2.01 | 22.75 | 227.59 | 3.28 |
| 26100 | 3.0-6.0 | 6 | 11200 | 0.147 | 9343 | 0.75 | 3.02 | 30.24 | 2.9 | 18.24 | 182.38 | 3.78 | |
| 17380 | 6.0-12.0 | 12 | 6000 | 0.03 | 5200 | 0.17 | 2.94 | 30 | 1.6 | 24.5 | 250 | 1.5 | |
