RS-9812H DC Motor High voltage high speed 110v 230v dc motor for Power Tool and Blender

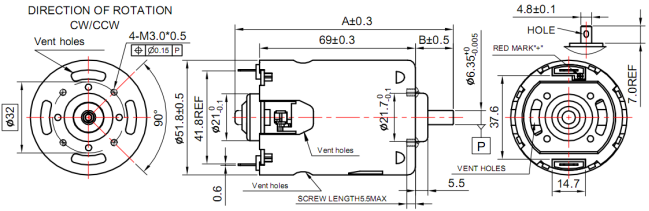

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-9812SH | 17132 | AC Rect. | 110 | 6967 | 0.17 | 5226 | 0.65 | 79 | 790.1 | 40.31 | 316 | 3161.7 | 2.09 |
| 17122 | AC Rect. | 110 | 7545 | 0.41 | 5624 | 1.04 | 97.92 | 998.8 | 56.69 | 424.2 | 4326.7 | 3.7 | |
| RS-9812PH | 15150 | AC Rect. | 230 | 10800 | 0.13 | 9169 | 0.73 | 119.9 | 1199.5 | 112.9 | 794 | 7942.8 | 4.1 |
| 12266 | AC Rect. | 230 | 7883 | 0.16 | 5281 | 0.52 | 109.35 | 1115.4 | 59.85 | 430.2 | 4388 | 1.72 | |
