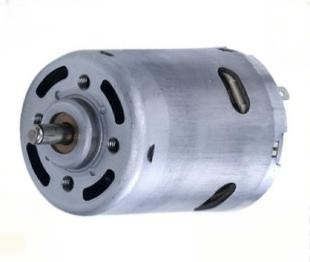

RS-987 dc motor 12 Volt high torque Electric dc motor for Power Tool and Door Opener

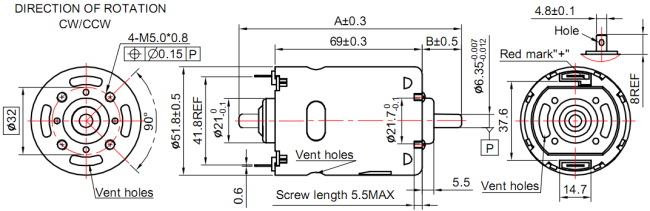

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-987PH | 4036 | 6.0-12.0 | 12 | 3300 | 0.51 | 2706 | 2.33 | 60.9 | 609.8 | 16.9 | 338 | 3387.7 | 10.62 |
| RS-987SH | 25115 | 12.0-24.0 | 24 | 2200 | 0.19 | 1804 | 0.65 | 55.6 | 567 | 10.03 | 226.5 | 2310 | 2.7 |
| 2973 | 12.0-24.0 | 24 | 3500 | 0.21 | 2970 | 1.18 | 59.36 | 593.6 | 18.46 | 392 | 3923 | 6.6 | |
| 5524 | 12.0-24.0 | 24 | 11000 | 1.24 | 9499 | 7.87 | 102.9 | 1050 | 97.8 | 745.9 | 7700 | 50.1 | |
| 3755 | 12.0-32.0 | 24 | 6300 | 0.5 | 5441 | 2.85 | 87.1 | 888 | 47.34 | 57.9 | 5910 | 16.2 | |

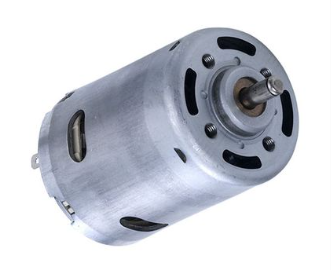

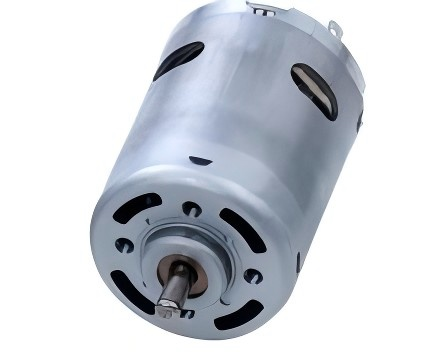

PRODUCT DISPLAY
 |
 |
 |
