RS-540/545H Micro DC Motor 12v 24v dc Electric Motor for Bilge Pump and Toy

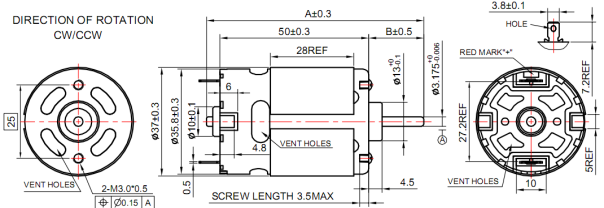

OUTLINE DRAWING： Unit:mm
TECHNICAL DATASHEETS：
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| RS-540SH | 4565 | 4.5-18.0 | 12 | 11000 | 0.52 | 9450 | 3.18 | 25.5 | 260 | 25.2 | 180.9 | 1845 | 19.4 |
| 6036 | 6.0-24.0 | 12 | 19500 | 0.95 | 16634 | 5.51 | 28.8 | 293.8 | 50.22 | 2000 | 196.1 | 32 | |
| RS-540PH | 7021 | 6.0-8.0 | 7.2 | 20000 | 1.2 | 17317 | 7.75 | 22.3 | 227.5 | 40.5 | 166.5 | 1698 | 50 |
| RS-545SH | 21105 | 6.0-24.0 | 13 | 3900 | 0.15 | 3120 | 0.6 | 13.9 | 141.8 | 4.54 | 69.53 | 6.82 | 2.4 |
| 5045 | 4.5-12.0 | 12 | 17500 | 0.95 | 15080 | 5.93 | 31.8 | 324 | 50.1 | 230 | 2350 | 37 | |
| 4075 | 9.0-15.0 | 12 | 9300 | 0.4 | 7500 | 1.8 | 15.3 | 157 | 12.1 | 79.3 | 810 | 7.62 | |
| 5016 | 3.0-9.0 | 9 | 22500 | 1.5 | 19000 | 8.12 | 25.7 | 262 | 51.1 | 165.1 | 1684 | 44.1 | |
| 7520 | 3.6-7.2 | 4.8 | 15400 | 2 | 13010 | 10.9 | 26 | 265 | 35.3 | 167 | 1700 | 59 | |
| 2854 | 6.0-24.0 | 24 | 15200 | 0.46 | 13078 | 2.84 | 38.4 | 391.7 | 52.55 | 275 | 2805 | 17.49 | |

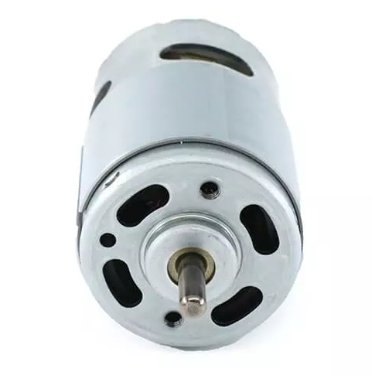

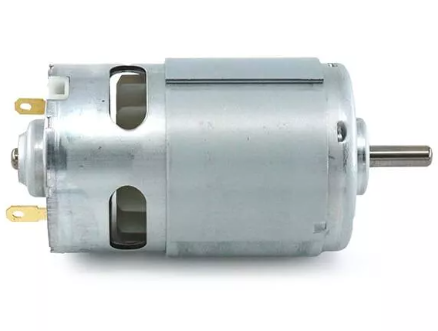

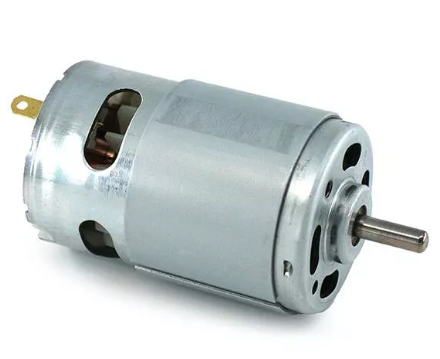

PRODUCT DISPLAY
 |
 |
 |
